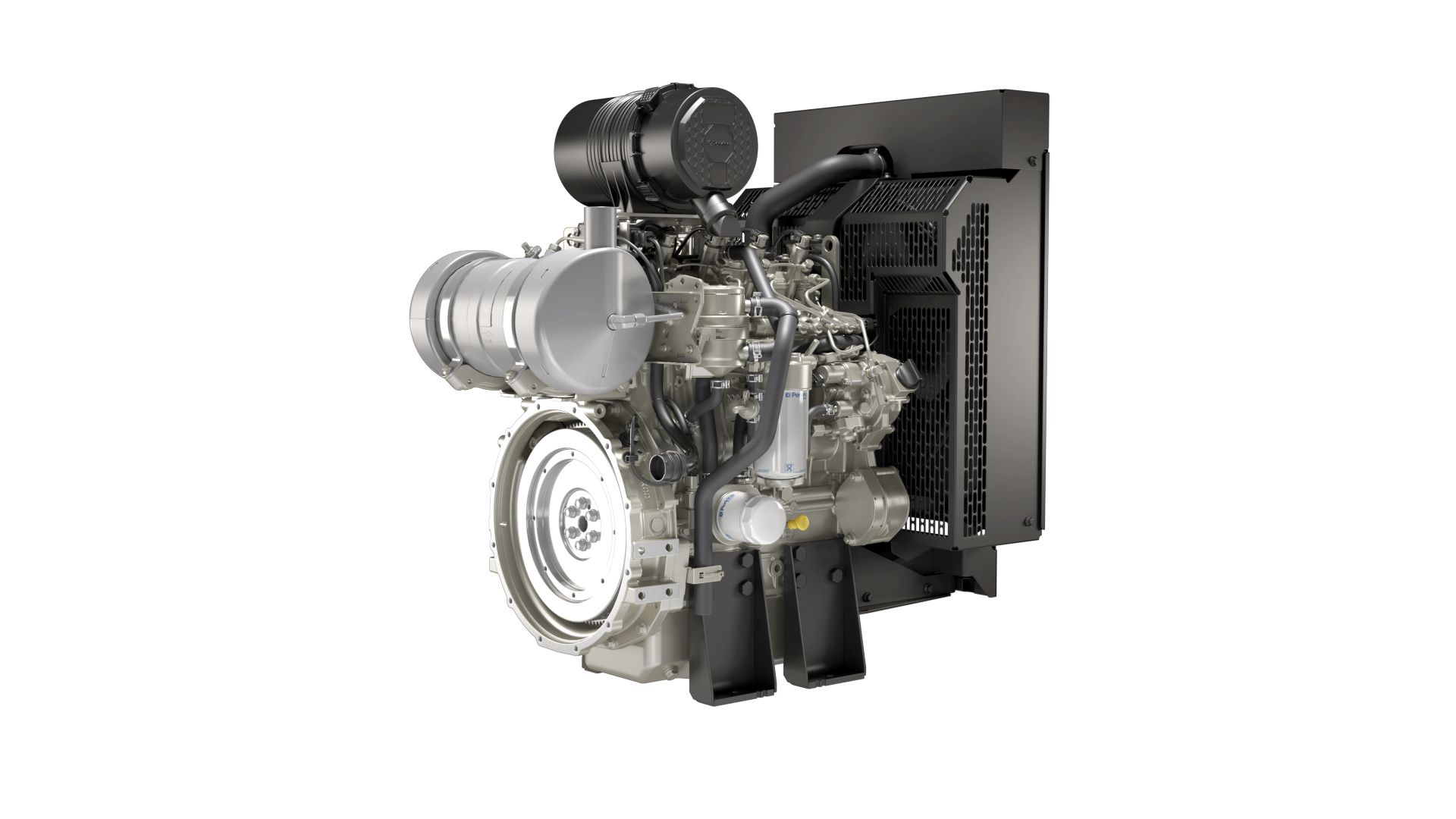

404J-E22T Industrial Open Power Unit

Industrial Open Power Units 404J-E22T

Request Consultation Find your Distributor

Key Specs

Maximum Power
60 hp
45 kW
Maximum Torque
164 lb-ft @ 1600 rpm
222 Nm @ 1600 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

Overview

The Perkins® 404J-E22T IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. With a wide choice of options, engine configurations and robust technologies, you can integrate the 404J-E22T into equipment with minimal re-engineering that can help save valuable costs.

Product Specifications for 404J-E22T

Maximum Power 60 hp 45 kW
Maximum Torque 164 lb-ft @ 1600 rpm 222 Nm @ 1600 rpm
Rated Speed 2800 rpm 2800 rpm
Minimum Power 49 hp 36.4 kW
Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final) EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 3.3 in 84 mm
Stroke 3.9 in 100 mm
Displacement 135 in³ 2.2 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged Turbocharged
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF DOC+DPF
Cooling System Liquid Liquid
Length 38 in 965 mm
Width 24.5 in 622 mm
Height 38.8 in 985 mm
Dry Weight 619 lb 281 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

404J-E22T Standard Equipment

Air System

  • Turbocharged

Electrical and Electronics

  • Electronic control module – chassis mounted
  • Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
  • The wiring harness, connectors and sensors are waterproof and designed to withstand harsh off-highway environments
  • Glow plug starting aid
  • Starter motor 12 volts
  • Alternator 12 volts, 85 amp

General

  • Multiple engine rating options
  • Cast iron engine block
  • Block heater provision
  • An extensive range of options are available, enabling you to prepare a specification matched precisely to your needs.

Power Take-Off (PTO)

  • SAE A PTO drive

Flywheel and Flywheel Housing

  • Flywheel and flywheel housing options

Fuel System

  • Electronic 2000 bar common rail fuel system
  • Fuel filter with water detector
