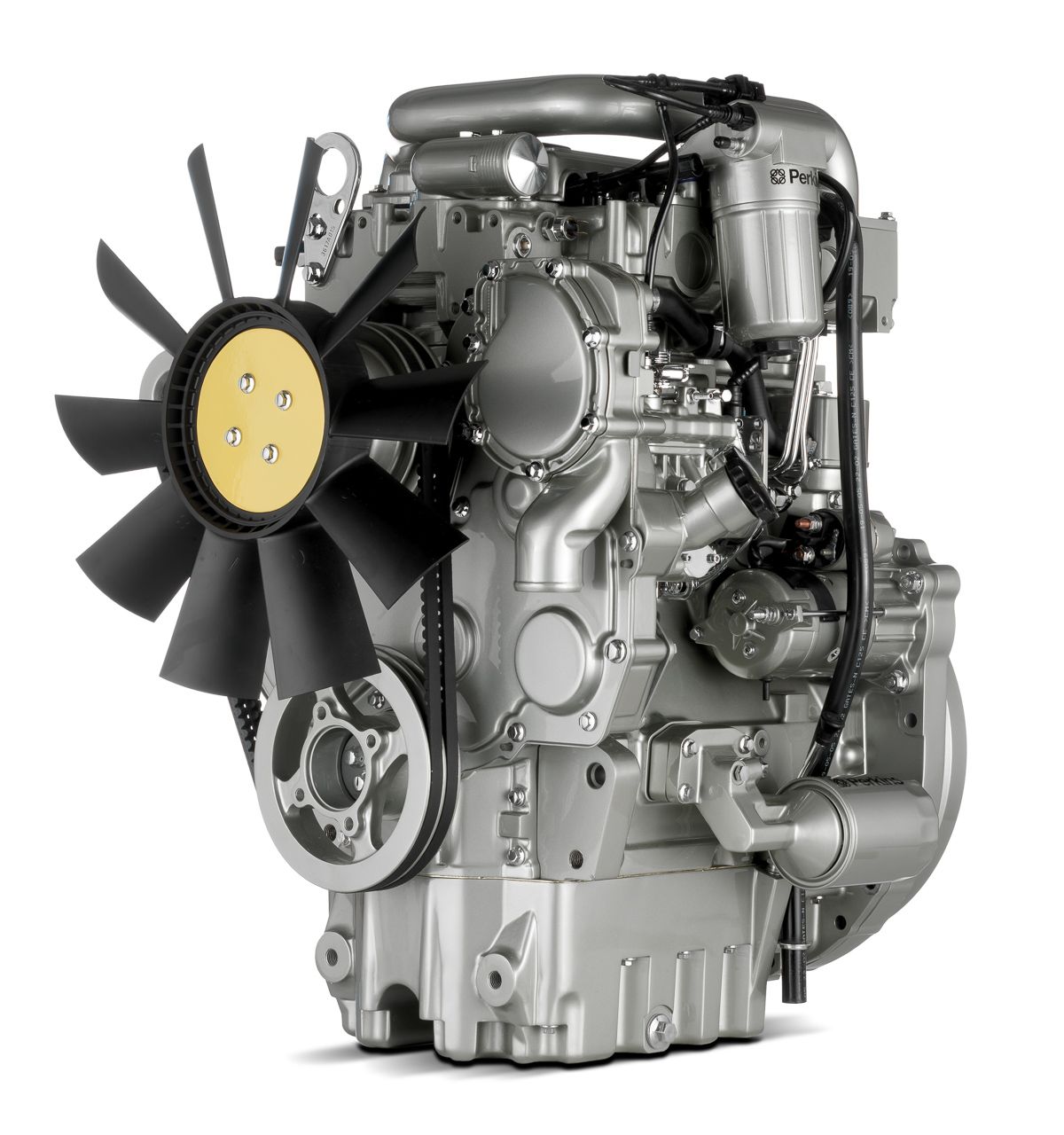

Industrial Diesel Engines 1103D-33TA

Speak to an expert Find your Distributor

Key Specs

Maximum Power
77.8 HP
58 kW
Maximum Torque
228.6 lb-ft @ 1400 rpm
310 Nm @ 1400 rpm
Emissions
UN ECE R96 Stage IIIA
UN ECE R96 Stage IIIA

Overview

The 1103 range provides cost effective power solutions and is proving particularly popular with operators of tractors. The engines meet EU Stage II/Stage IIIA and U.S. EPA Tier 2/Tier 3 equivalent emissions standards. The compact 3.3 litre engines have a cylinder head and block design that gives mastery of air control, maintains bore roundness under pressure, and reduces combustion and mechanical noise. High quality oil and fuel filtration deliver improved reliability and durability.

The 1103D engines – which deliver 36.9-58 kW (49.5-77.8 hp) at 2200 rpm – are particularly suitable for tractors and compact industrial applications, and have features and benefits that really meet your industrial power applications needs.

Product Specifications for 1103D-33TA

more_vert
Save this as your preferred unit of measurement clear

Power Rating

Emission Standards

General

Engine Dimensions*

Disclaimer

1103D-33TA Standard Equipment

Air System

  • Cast iron exhaust manifold
  • Integral inlet manifold
  • Side mounted turbocharger

Electrical and Electronics

  • 12 volt alternator
  • 12 volt starter motor
  • Engine shut-off solenoid

Cooling System

  • Coolant temperature switch
  • Cooling fan
  • Water outlet

Fuel System

  • Ecoplus fuel filter

General

  • Cast iron engine block
  • Choice of filler positions
  • Glow plug starting aid

Oil System

  • Dipstick (left or right position)
  • Lubricating oil pressure switch
  • Lubricating oil sump for 4WD tractors
  • Standard oil filters

Power Take-Off (PTO)

  • Provision for PTOs
