400 Series
Our 400 Series is a proven family of engines designed to give optimised performance and robust technology for the smaller, compact engine sector.
Our industrial engines in the series are a world engine, manufactured on three continents. They’re designed to meet global emissions standards, from unregulated to EU Stage IIIB/U.S. EPA Tier 4 Final. Electric power engines in the series achieve regulated and unregulated emission standards globally.

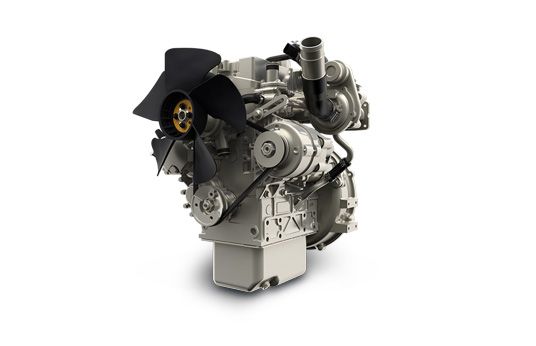

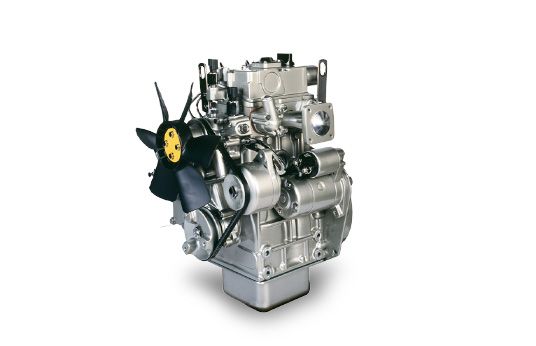

Perkins® 400 Series engine range
Industrial engines
Industrial open power units
Electric power engines - certified
Electric power engines - fuel optimised
-
- Maximum Power
- 13.7 HP
- 10.2 kW
- Maximum Torque
- 21.9 lb-ft @ 2600 rpm
- 29.7 Nm @ 2600 rpm
- Emissions
- U.S. EPA Tier 4 Interim equivalent
- U.S. EPA Tier 4 Interim equivalent
402D-05
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 2 cylinder 402D-05 model is Perkins smallest engine, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 402D-05 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More
Perkins smallest engine, the 402D-05 combines impressive performance, low operating costs and an ultra-compact, efficient package ideally suited to a wide range of small off-highway applications. -
- Maximum Power
- 11.8 HP
- 8.8 kW
- Maximum Torque
- 22 lb-ft @ 2100 rpm
- 29.7 Nm @ 2100 rpm
- Emissions
- EU Stage V
- EU Stage V
402J-05
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 2 cylinder 402-05 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 402-05 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 20.5 HP
- 15.3 kW
- Maximum Torque
- 37.1 lb-ft @ 2400 rpm
- 50.4 Nm @ 2400 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
403D-07
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-07 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403-07 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 11.8 HP
- 8.8 kW
- Maximum Torque
- 30.2 lb-ft @ 2000 rpm
- 41 Nm @ 2000 rpm
- Emissions
- U.S EPA Tier 4 Final
- U.S EPA Tier 4 Final
403F-07
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-07 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403-07 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 17.8 HP
- 13.3 kW
- Maximum Torque
- 32 lb-ft @ 2400 rpm
- 44 Nm @ 2400 rpm
- Emissions
- EU Stage V
- EU Stage V
403J-07
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-07 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403-07 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 28.2 HP
- 21 kW
- Maximum Torque
- 49.4 lb-ft @ 2400 rpm
- 67 Nm @ 2400 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
403D-11
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-11 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403-11 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 28 HP
- 21 kW
- Maximum Torque
- 52 lb-ft @ 1800 rpm
- 70 Nm @ 1800 rpm
- Emissions
- China NR IV
- China NR IV
403EA-11
The Perkins 403EA-11 ais an indirect injection industrial diesel engine meeting China offroad Nonroad Stage IV without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as naturally aspirated engine we offer a range of factory configurable options to minimise the cost of machine development and of manufacturing if equiped with e-controller.
Learn More -
- Maximum Power
- 24 HP
- 18.4 kW
- Maximum Torque
- 49 lb-ft @ 2100 rpm
- 66.8 Nm @ 2100 rpm
- Emissions
- EU Stage V, U.S. Tier 4 Final
- EU Stage V, U.S. Tier 4 Final
403J-11
The Perkins� 400J range has been developed in consultation with our marketplace. This 1.1 litre, 3 cylinder engine complements the exciting 400 Series product line‑up, offering customers a choice of ultra compact, lightweight engines whilst maintaining all the customer benefits they can experience from other products in the range.
Learn More
The 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the construction, materials handling, agricultural/turf, genset and compressor markets, it is another class leading diesel range from Perkins.
Long 500 hour service intervals, a two‑year standard warranty, low noise and harshness, and a wide range of options make the 400 Series range the complete solution for compact power needs.
The 403J‑11 is a very quiet 1.13 litre unit delivering impressive performance with low operating costs in a small, efficient package ideal for a range of off‑highway applications. -
- Maximum Power
- 24 HP
- 18.4 kW
- Maximum Torque
- 63.4 lb-ft @ 1600 rpm
- 86 Nm @ 1600 rpm
- Emissions
- China NR IV
- China NR IV
403EA-11T
The 403EA-11T is an indirect injection industrial diesel engine meeting China offroad NR4 without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as a turbocharged engine for improved low speed torque, we also offer a range of factory configurable options to minimise the cost of machine development and of manufacturing if equiped with e-controller.
Learn More -
- Maximum Power
- 24 HP
- 18.4 kW
- Maximum Torque
- 63.4 lb-ft @ 1600 rpm
- 86 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
403J-11T
The 403J-11T is a turbocharged indirect injection industrial diesel engine that meets both EPA Tier 4 final and EU Stage V without the need for electronic control, aftertreatment or exhaust gas recirculation. It is available with many factory configurable options to minimise the costs of machine development and of manufacturing.
Learn More -
- Maximum Power
- 33.7 HP
- 25.1 kW
- Maximum Torque
- 70.8 lb-ft @ 1800 rpm
- 96 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
403D-15
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-15 model is the mid-range 400 Series engine, combining performance, low operating costs and a compact package. From a packaging point of view, the 403-15 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 24.6 HP
- 18.4 kW
- Maximum Torque
- 63.4 lb-ft @ 1800 rpm
- 86 Nm @ 1800 rpm
- Emissions
- U.S EPA Tier 4 Final
- U.S EPA Tier 4 Final
403F-15
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403F-15 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403F-15 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More
A practical solution for you to upgrade to the latest emissions standards with minimum machine change and development costs, and a common machine for export markets. -
- Maximum Power
- 40.2 HP
- 30 kW
- Maximum Torque
- 82.4 lb-ft @ 1800 rpm
- 111.8 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
403D-15T
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-15 model is the mid-range 400 Series engine, combining performance, low operating costs and a compact package. From a packaging point of view, the 403-15 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 25.3 HP
- 18.9 kW
- Maximum Torque
- 75.7 lb-ft @ 1400 rpm
- 97.9 Nm @ 1400 rpm
- Emissions
- China NR IV
- China NR IV
403EA-17
The 403EA-17 is an indirect injection industrial diesel engines meeting China offroad NR4 without the need for electronic control, aftertreatment or exhaust gas recirculation. It is available with many factory configurable options to minimise the costs of machine development and of manufacturing.
Learn More -
- Maximum Power
- 24 HP
- 18.9 kW
- Maximum Torque
- 75.7 lb-ft @ 1400 rpm
- 97.9 Nm @ 1400 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
403J-17
The 403J-17 is an indirect injection industrial diesel engine that meets both EU Stage V and U.S. EPA Tier 4 Final without the need for electronic control, aftertreatment or exhaust gas recirculation. It is available with many factory configurable options to minimise the costs of machine development and of manufacturing.
Learn More -
- Maximum Power
- 25 HP
- 18.9 kW
- Maximum Torque
- 76 lb-ft @ 1600 rpm
- 103 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
403J-17T
The 403J-17T is a turbocharged indirect injection industrial diesel engine that meets both EU Stage V and U.S. EPA Tier 4 Final without the need for electronic control, aftertreatment or exhaust gas recirculation. It is available with many factory configurable options to minimise the costs of machine development and of manufacturing.
Learn More -
- Maximum Power
- 48 HP
- 36 kW
- Maximum Torque
- 122 lb-ft @ 1600 rpm
- 166 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
403J-E17T
Perkins is an off-highway engine specialist with more than 85 years’ experience of designing, building and servicing industrial power solutions. We work in close partnership with over 800 OEMs including some of world’s best known machine brands.
Learn More
With an extensive global presence and a commitment to collaboration, we are able to customise our aftermarket services to the needs of our OEM customers. -
- Maximum Power
- 51 HP
- 38 kW
- Maximum Torque
- 105.2 lb-ft @ 1800 rpm
- 142.7 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
404D-22
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 4 cylinder 404-22 model sits at the top of the 400 Series engine range. It combines high performance, low operating costs and a compact package. The 404-22 is the ideal engine for a wide range of off-highway applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
Learn More
A very quiet 2.2 litre unit delivering improved performance and low operating costs in a small, efficient package. -
- Maximum Power
- 48 HP
- 36 kW
- Maximum Torque
- 105.2 lb-ft @ 1800 rpm
- 142.7 Nm @ 1800 rpm
- Emissions
- China NR IV
- China NR IV
404EA-22
The 404EA-22 and 404EA-22T are indirect injection industrial diesel engines meeting China offroad NR4 without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as naturally aspirated or turbocharged for improved low speed torque, we also offer a range of factory configurable options to minimise the cost of machine development and of manufacturing if equiped with e-controller.
Learn More -
- Maximum Power
- 61 HP
- 45.5 kW
- Maximum Torque
- 139.5 lb-ft @ 1800 rpm
- 189.1 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
404D-22T
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 4 cylinder 404-22 model sits at the top of the 400 Series engine range. It combines high performance, low operating costs and a compact package. The 404-22 is the ideal engine for a wide range of off-highway applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
Learn More
A powerful but quiet 2.2 litre turbocharged unit delivering impressive performance with low operating costs in a small efficient package -
- Maximum Power
- 48.8 HP
- 36.4 kW
- Maximum Torque
- 140 lb-ft @ 1700 rpm
- 190 Nm @ 1700 rpm
- Emissions
- China NR IV
- China NR IV
404EA-22T
The 404EA-22T is an indirect injection industrial diesel engine meeting China offroad NR4 without the need for electronic control, aftertreatment or exhaust gas recirculation. Available as turbocharged for improved low speed torque, we also offer a range of factory configurable options to minimise the cost of machine development and of manufacturing if equiped with e-controller.
Learn More -
- Maximum Power
- 66 HP
- 49.2 kW
- Maximum Torque
- 147.5 lb-ft @ 1800 rpm
- 200 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
404D-22TA
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 4 cylinder 404-22 model sits at the top of the 400 Series engine range. It combines high performance, low operating costs and a compact package. The 404-22 is the ideal engine for a wide range of off-highway applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
Learn More
-
- Maximum Power
- 24.3 HP
- 18.1 kW
- Maximum Torque
- 47.6 lb-ft @ 2100 rpm
- 64.6 Nm @ 2100 rpm
- Emissions
- U.S. EPA Tier 4 Interim equivalent, China NRIII
- U.S. EPA Tier 4 Interim equivalent, China NRIII
403D-11
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-11 model is one of Perkins smallest engines, combining performance, low operating costs and an ultra-compact package. From a packaging point of view, the 403-11 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 32.5 HP
- 24.2 kW
- Maximum Torque
- 69.6 lb-ft @ 1800 rpm
- 94.4 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
403D-15
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 3 cylinder 403-15 model is the mid-range 400 Series engine, combining performance, low operating costs and a compact package. From a packaging point of view, the 403-15 is the ideal engine for small industrial applications. Its simple, robust mechanical fuel system makes it easy to install and maintain.
Learn More -
- Maximum Power
- 51 HP
- 38 kW
- Maximum Torque
- 103.7 lb-ft @ 1800 rpm
- 140.6 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
404D-22
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 4 cylinder 404-22 model sits at the top of the 400 Series engine range. It combines high performance, low operating costs and a compact package. The 404-22 is the ideal engine for a wide range of off-highway applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
Learn More
A very quiet 2.2 litre unit offering the advantages of an industrial engine and the convenience of a cost effective cooling and air filtration solution -
- Maximum Power
- 61 HP
- 45.5 kW
- Maximum Torque
- 139.4 lb-ft @ 1800 rpm
- 189.1 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent, China NRIII
404D-22T
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 4 cylinder 404-22 model sits at the top of the 400 Series engine range. It combines high performance, low operating costs and a compact package. The 404-22 is the ideal engine for a wide range of off-highway applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
Learn More
A quiet 2.2 litre turbocharged unit offering the advantages of an industrial engine and the convenience of a cost effective cooling and air filtration solution -
- Maximum Power
- 62 HP
- 46.2 kW
- Maximum Torque
- 143.8 lb-ft @ 1800 rpm
- 195 Nm @ 1800 rpm
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
- EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
404D-22TA
The Perkins 400 Series is an extensive family of engines in the 0.5-2.2 litre range. The 4 cylinder 404-22 model sits at the top of the 400 Series engine range. It combines high performance, low operating costs and a compact package. The 404-22 is the ideal engine for a wide range of off-highway applications. It is offered with both indirect (IDI) and common rail fuel injection systems.
Learn More
A quiet 2.2 litre turbocharged unit offering the advantages of an industrial engine and the convenience of a cost effective cooling and air filtration solution -
- Maximum Power
- 60 HP
- 45 kW
- Maximum Torque
- 164 lb-ft @ 1600 rpm
- 222 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
404J-E22T
The Perkins® 404J-E22T IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. With a wide choice of options, engine configurations and robust technologies, you can integrate the 404J-E22T into equipment with minimal re-engineering that can help save valuable costs.
Learn More
-
- Gross Mechanical Output
- 4.6-5.1 kWm
- 4.6-5.1 kWm
- Typical Electrical Output
- 4.8-5.3 kVA (3.9-4.2 kWe)
- 4.8-5.3 kVA (3.9-4.2 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 3
- EU Stage IIIA/U.S. EPA Tier 3
402D-05G
Perkins 400 Series electric power (EP) engines are the ideal solution if you're looking for reliable, economical power from a compact unit. Our 402 range is the smallest of all. These 0.5 litre, 2 cylinder engines are robust and efficient and can fulfil your power generation needs with minimal operating costs. Engines meet EU Stage IIIA/U.S. EPA Tier 4 interim and the more stringent Tier 4 Final emissions standards. Impressive cold-start capabilities even in the most demanding conditions make them an excellent choice for less regulated territories.
Learn More -
- Gross Mechanical Output
- 3.4-3.8 kWm
- 3.4-3.8 kWm
- Typical Electrical Output
- 3.5-3.9 kVA (2.8-3.9 kWe)
- 3.5-3.9 kVA (2.8-3.9 kWe)
- Emissions
- U.S. EPA Tier 4 Final
- U.S. EPA Tier 4 Final
402F-05G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 402 product range offers a highly compact Perkins electro units to provide robust 2 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 3.6-4 kWm
- 3.6-4 kWm
- Typical Electrical Output
- 3.5-3.9 kVA (2.8-3.2 kWe)
- 3.5-3.9 kVA (2.8-3.2 kWe)
- Emissions
- EU Stage V
- EU Stage V
402J-05G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 402 product range offers a highly compact Perkins electro units to provide robust 2 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 5.5-7.4 kWm
- 5.5-7.4 kWm
- Typical Electrical Output
- 5.6-7.7 kVA (4.5-6.1 kWe)
- 5.6-7.7 kVA (4.5-6.1 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 3
- EU Stage IIIA/U.S. EPA Tier 3
403D-07G
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
Learn More -
- Gross Mechanical Output
- 5.1-5.6 kWm
- 5.1-5.6 kWm
- Typical Electrical Output
- 5.4-5.9 kVA (4.3-4.7 kWe)
- 5.4-5.9 kVA (4.3-4.7 kWe)
- Emissions
- U.S. EPA Tier 4 Final
- U.S. EPA Tier 4 Final
403F-07G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 403 Product range offers a highly compact Perkins electro units and electropaKs to provide robust 3 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 6.0-6.6 kWm
- 6.0-6.6 kWm
- Typical Electrical Output
- 5.8-6.4 kVA (4.7-5.1 kWe)
- 5.8-6.4 kVA (4.7-5.1 kWe)
- Emissions
- EU Stage V
- EU Stage V
403J-07G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 403 Product range offers a highly compact Perkins electro units and electropaKs to provide robust 3 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 8-18 kWm
- 8-18 kWm
- Typical Electrical Output
- 9-20 kVA (7-16 kWe)
- 9-20 kVA (7-16 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 interim
- EU Stage IIIA/U.S. EPA Tier 4 interim
403D-11G
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
Learn More -
- Gross Mechanical Output
- 8.9-9.8 kWm
- 8.9-9.8 kWm
- Typical Electrical Output
- 11.2-12.4 kVA (9-9.9 kWe)
- 11.2-12.4 kVA (9-9.9 kWe)
- Emissions
- U.S EPA Tier 4 Final
- U.S EPA Tier 4 Final
403F-11G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 403 Product range offers a highly compact Perkins electro units and electropaKs to provide robust 3 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 8.6-9.5 kWm
- 8.6-9.5 kWm
- Typical Electrical Output
- 9.0-10 kVA (7.2-8 kWe)
- 9.0-10 kVA (7.2-8 kWe)
- Emissions
- EU Stage V
- EU Stage V
403J-11G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 403 Product range offers a highly compact Perkins electro units and electropaKs to provide robust 3 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 12-19.7 kWm
- 12-19.7 kWm
- Typical Electrical Output
- 13-24 kVA (10-19 kWe)
- 13-24 kVA (10-19 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 interim
- EU Stage IIIA/U.S. EPA Tier 4 interim
403D-15G
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
Learn More -
- Gross Mechanical Output
- 12.6-14 kWm
- 12.6-14 kWm
- Typical Electrical Output
- 13.5-15.1 kVA (10.8-12.1 kWe)
- 13.5-15.1 kVA (10.8-12.1 kWe)
- Emissions
- U.S EPA Tier 4 Final
- U.S EPA Tier 4 Final
403F-15G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, they have been designed to comply with stringent emissions regulations for EU and USA. The 403 Product range offers a highly compact Perkins electro units and electropaKs to provide robust 3 cylinder diesel engines designed to provide economic and durable operation for prime power applications, hitting the key power nodes required by the power generation industry.
Learn More -
- Gross Mechanical Output
- 18-24 kWm
- 18-24 kWm
- Typical Electrical Output
- 20-26 kVA (16-21 kWe)
- 20-26 kVA (16-21 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 interim
- EU Stage IIIA/U.S. EPA Tier 4 interim
404D-22G
The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4 cylinder, 2.2 litre 404 offers improvements such as reduced noise, vibration and harshness (NVH). Offering the same customer benefits as the wider 400 family such as reliability, cold-start capability, low operating costs, excellent fuel economy and compact, clever design the 404 makes a smart choice for customers in the generator set market across unregulated and EU Stage IIIA/U.S. EPA Tier4 interim territories.
Learn More -
- Gross Mechanical Output
- 18.6-20.6 kWm
- 18.6-20.6 kWm
- Typical Electrical Output
- 20.1-22.3 kVA (16.1-17.8 kWe)
- 20.1-22.3 kVA (16.1-17.8 kWe)
- Emissions
- EU Stage V
- EU Stage V
404J-22G
The Perkins® 400 Series engine family continues to set new standards in the compact engine market. Developed alongside customers to fulfil their needs in the generator set market, the 404J-22 has been designed to comply with stringent emissions regulations for EU.
Learn More -
- Gross Mechanical Output
- 25-33 kWm
- 25-33 kWm
- Typical Electrical Output
- 27-36 kVA (22-29 kWe)
- 27-36 kVA (22-29 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 interim
- EU Stage IIIA/U.S. EPA Tier 4 interim
404D-22TG
The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4 cylinder, 2.2 litre 404 offers improvements such as reduced noise, vibration and harshness (NVH). Offering the same customer benefits as the wider 400 family – such as reliability, cold-start capability, low operating costs, excellent fuel economy and compact, clever design – the 404 makes a smart choice for customers in the generator set market across unregulated and EU Stage IIIA/U.S. EPA Tier4 interim territories.
Learn More -
- Gross Mechanical Output
- 33-36.4 kWm
- 33-36.4 kWm
- Typical Electrical Output
- 37-40 kVA (29-32 kWe)
- 37-40 kVA (29-32 kWe)
- Emissions
- EU Stage IIIA/U.S. EPA Tier 4 interim
- EU Stage IIIA/U.S. EPA Tier 4 interim
404D-22TAG
The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4 cylinder, 2.2 litre 404 offers improvements such as reduced noise, vibration and harshness (NVH). Offering the same customer benefits as the wider 400 family – such as reliability, cold-start capability, low operating costs, excellent fuel economy and compact, clever design – the 404 makes a smart choice for customers in the generator set market across unregulated and EU Stage IIIA/U.S. EPA Tier4 interim territories.
Learn More
-
- Gross Mechanical Output
- 8.6-9.5 kWm
- 8.6-9.5 kWm
- Typical Electrical Output
- 9-10 kVA (7.2-8 kWe)
- 9-10 kVA (7.2-8 kWe)
- Emissions
- Fuel Optimised
- Fuel Optimised
403A-11G
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
Learn More -
- Gross Mechanical Output
- 12-18 kWm
- 12-18 kWm
- Typical Electrical Output
- 13-19.5 kVA (10-15.6 kWe)
- 13-19.5 kVA (10-15.6 kWe)
- Emissions
- Fuel Optimised
- Fuel Optimised
403A-15G
The Perkins 403 range of electric power (EP) engines delivers the same compact benefits of its 2 cylinder stablemate, but takes a stride forward in terms of noise, refinement and power. The 3 cylinder range offers excellent power density and superb fuel economy and is designed to meet your power generation needs in both unregulated territories where extreme conditions are likely, and higher regulated territories with more stringent emissions standards.
Learn More -
- Gross Mechanical Output
- 18-20 kWm
- 18-20 kWm
- Typical Electrical Output
- 20-22 kVA (16-18 kWe)
- 20-22 kVA (16-18 kWe)
- Emissions
- Fuel Optimised
- Fuel Optimised
404A-22G
The Perkins 404 range of electric power (EP) engines is the largest, most refined member of the 400 Series. The 4 cylinder, 2.2 litre 404 offers improvements such as reduced noise, vibration and harshness (NVH). Offering the same customer benefits as the wider 400 family – such as reliability, cold-start capability, low operating costs, excellent fuel economy and compact, clever design – the 404 makes a smart choice for customers in the generator set market across unregulated and EU Stage IIIA/U.S. EPA Tier4 interim territories.
Learn More
-
Speak to an expert
If you're ready to receive trusted advice from a Perkins expert, speak to our team today.
Connect with us -
Powernews Q3 2023
Our digital magazine with the latest news, interviews and analysis.
Read more -
Distributor locator
Your regional Perkins Distributor can provide local, on-the-ground engine support.
Learn More
