Power Rating
| Maximum Power | 48 hp 36 kW |
| Maximum Torque | 122 lb-ft @ 1600 rpm 166 Nm @ 1600 rpm |
| Rated Speed | 2800 rpm 2800 rpm |

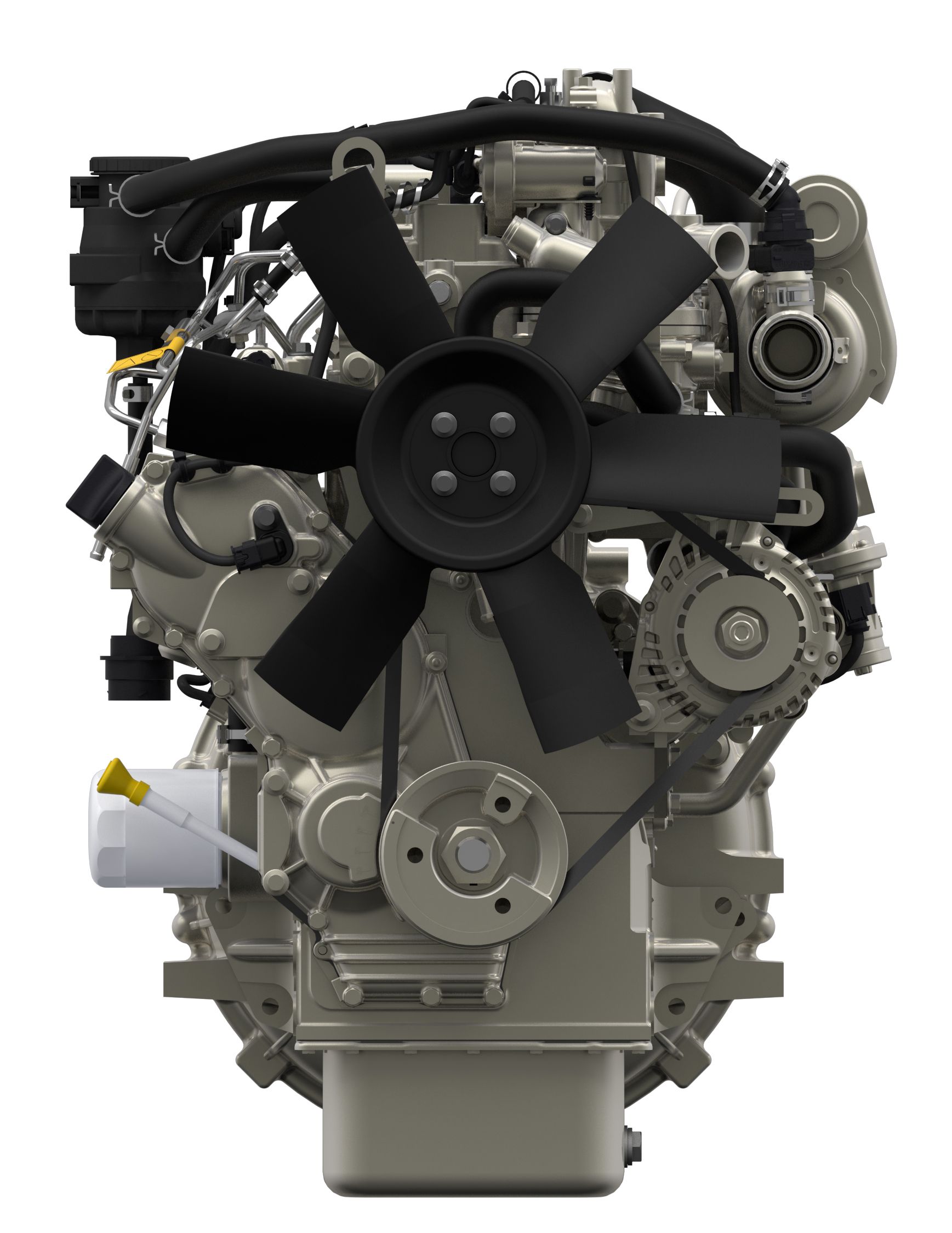

Industrial Diesel Engines 403J-E17T
Request Consultation Find your DistributorKey Specs
- Maximum Power
- 48 hp
- 36 kW
- Maximum Torque
- 122 lb-ft @ 1600 rpm
- 166 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
Overview
Perkins is an off-highway engine specialist with more than 85 years’ experience of designing, building and servicing industrial power solutions. We work in close partnership with over 800 OEMs including some of world’s best known machine brands.
With an extensive global presence and a commitment to collaboration, we are able to customise our aftermarket services to the needs of our OEM customers.
Features At A Glance
Delivering an impressive 166 Nm of torque, this engine enables users toeasily downsize.
Product Specifications for 403J-E17T
Emission Standards
| Emissions | EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final |
General
| Number of Cylinders | 3 inline 3 inline |
| Bore | 3.3 in 84 mm |
| Stroke | 3.9 in 100 mm |
| Displacement | 103.74 in³ 1.7 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged Turbocharged |
| Combustion System | Direct Injection Direct Injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | DOC+DPF DOC+DPF |
Engine Dimensions*
| Length | 28.1 in 713 mm |
| Width | 21.1 in 536 mm |
| Height | 28.4 in 722 mm |
| Dry Weight | 419 lb 190 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
