1706D-E93TA Industrial Open Power Unit

Industrial Open Power Units 1706D-E93TA

1706D-E93TA

Speak to an expert Find your Distributor

Key Specs

Maximum Power
416 HP
310 kW
Maximum Torque
1335 lb-ft @ 1400 rpm
1810 Nm @ 1400 rpm
Emissions
China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA

Overview

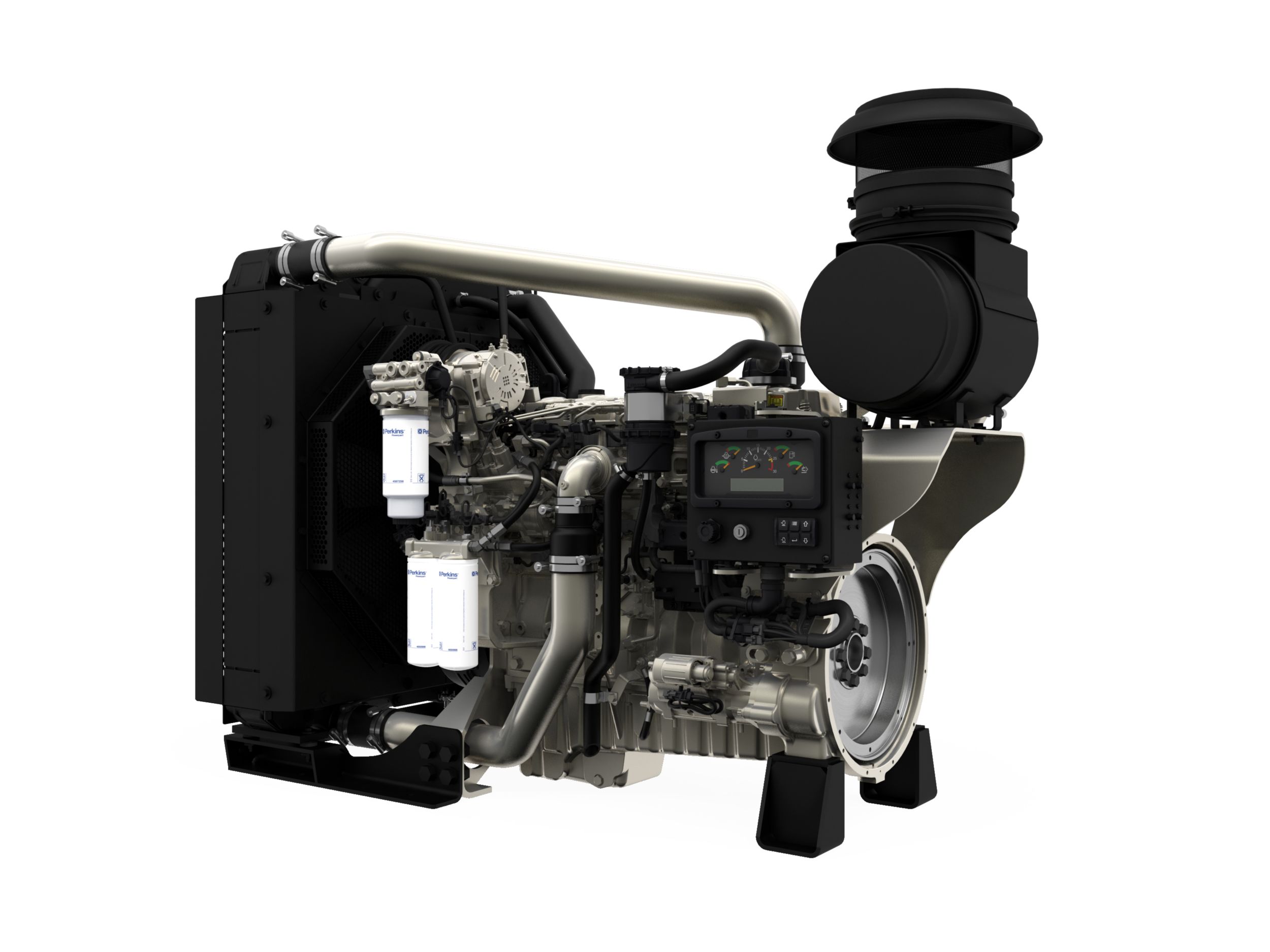

The Perkins® 1706D-E93TA IOPU provides a complete plug-and-play power solution to meet China Nonroad Stage III, Brazil MAR-1, and UN R96 Stage IIIA emission standards and UN R120 performance standard for measurement of net power and specific fuel consumption. The IOPU configurations come equipped with engine-mounted air filter design, an integrated cooling pack, and full wire harnessing coupled to a single engine-mounted ECM.

Product Specifications for 1706D-E93TA

Maximum Power 416 HP 310 kW
Maximum Torque 1335 lb-ft @ 1400 rpm 1810 Nm @ 1400 rpm
Rated Speed 1800-2200 rpm 1800-2200 rpm
Minimum Power 308 HP 230 kW
Emissions China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA
Number of Cylinders In-line 6 In-line 6
Cycle 4 stroke 4 stroke
Bore 4.5 in 115 mm
Stroke 5.9 in 149 mm
Displacement 567.5 in³ 9.3 l
Compression Ratio 16.5:1 16.5:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Cooling System Liquid Liquid
Length 83 in 2110 mm
Width 43 in 1100 mm
Height 63 in 1603 mm
Dry Weight 3265 lb 1481 kg

1706D-E93TA Standard Equipment

Air System

  • Air-to-air aftercooled
  • Front or rear exhaust configurations available

Control System

  • Advanced controls - electronic control system
  • Automatic altitude compensation
  • Configurable software features
  • Engine monitoring system SAE J1939 broadcast and control
  • Integrated, advanced electronic control module (ECU)
  • Over-foam wiring harness
  • Power compensated for fuel temperature
  • Remote fan control

Cooling System

  • Centrifugal belt-driven water pump
  • Detailed guidance on cooling system design and validation available to ensure machine reliability

Flywheel and Flywheel Housing

  • Standard SAE No. 1 flywheel housing with SAE No. 14 or 140 flywheels

Fuel System

  • High pressure common rail fuel system
  • Oil-lubricated high pressure fuel and mechanical fuel transfer pump combination
  • Remote fuel filter configuration available

General

  • Lifting eyes
  • Vibration damper

Oil System

  • Choice of front, rear or centre sumps
  • Gear-driven oil pump
  • Oil cooler
  • Oil dipstick
  • Oil filler

Power take-off

  • Available SAE No. 1 flywheel housings with rear power take-off (PTO) drive options for SAE B, SAE C, or a combination
  • Engine power can also be taken from the front of the engine on some applications

1706D-E93TA Optional Equipment

Industrial Power Unit

  • Factory-installed cooling pack which includes the radiator, the air-to-air aftercooler (ATAAC), coolant lines to and from the radiator, and air lines to and from the ATAAC.
  • Factory-installed engine-mounted aftertreatment system, pre-connected exhaust air lines, and air cleaners
  • Factory-installed instrument / control panels embedded with telematics units
