Power Rating
| Maximum Power | 173 hp 129 kW |
| Maximum Torque | 546 lb-ft @ 1500 rpm 740 Nm @ 1500 rpm |
| Rated Speed | 2200 rpm 2200 rpm |
| Minimum Power | 173 hp 129 kW |

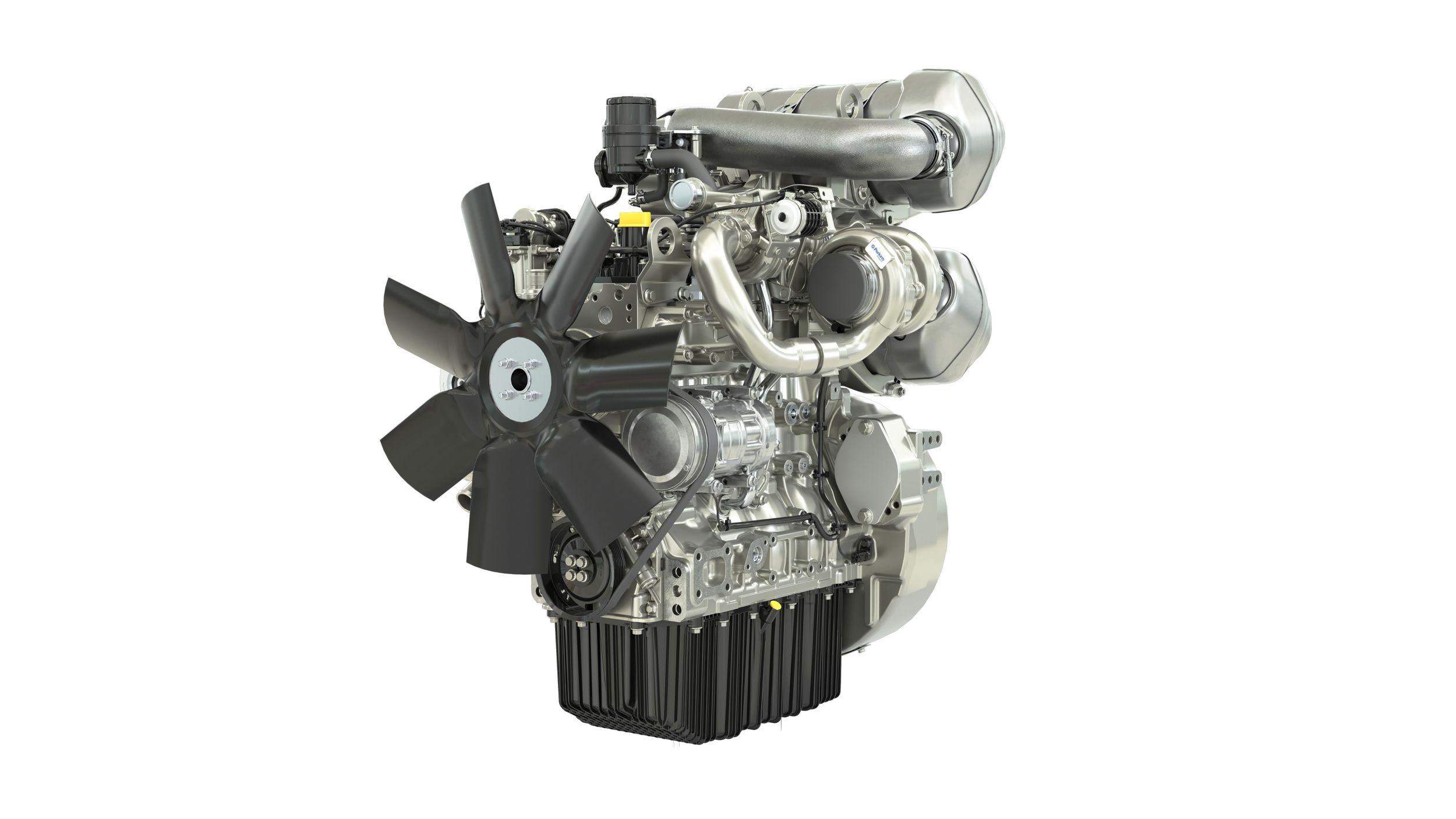

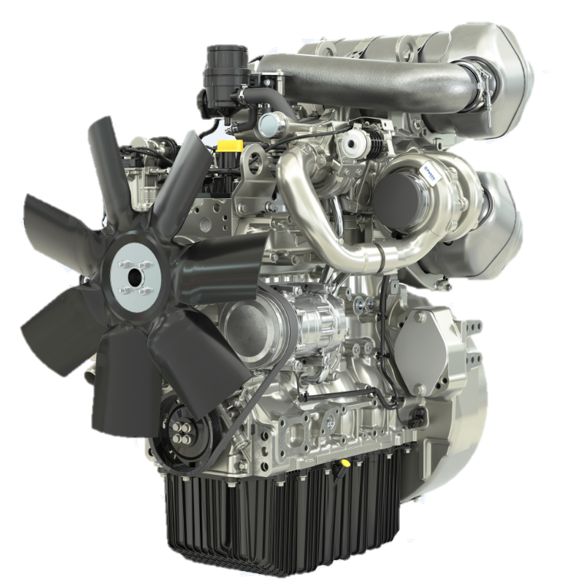

Industrial Diesel Engines 904J-E36TTA
Request Consultation Find your DistributorKey Specs
- Maximum Power
- 173 hp
- 129 kW
- Maximum Torque
- 546 lb-ft @ 1500 rpm
- 740 Nm @ 1500 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
Overview
The Perkins® 904J-E36TTA delivers big-engine performance in a compact footprint, offering up to 129 kW of power and 740 Nm of torque. Built for global emissions compliance, it ensures seamless integration with simple, engine-mounted aftertreatment. With extended service intervals, fuel flexibility, and proven durability, this engine maximises power, efficiency, and reliability for diverse machine applications.
Features At A Glance
Product Specifications for 904J-E36TTA
Emission Standards
| Emissions | EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final |
General
| Number of Cylinders | 4 4 |
| Displacement | 221 in³ 3.6 l |
| Aspiration | Twin turbocharged aftercooled (TTA) Twin turbocharged aftercooled (TTA) |
| Bore | 3.9 in 98 mm |
| Stroke | 3.9 in 98 mm |
| Combustion System | Direct injection Direct injection |
| Compression Ratio | 17.0:1 17.0:1 |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Total Lubricating Oil Capacity | 4.2 gal (US) 16 l |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 33.5 in 850 mm |
| Width | 26.8 in 680 mm |
| Height | 41.8 in 1060 mm |
| Dry Weight | 882 lb 400 kg |
| Wet Weight | 937 lb 425 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
