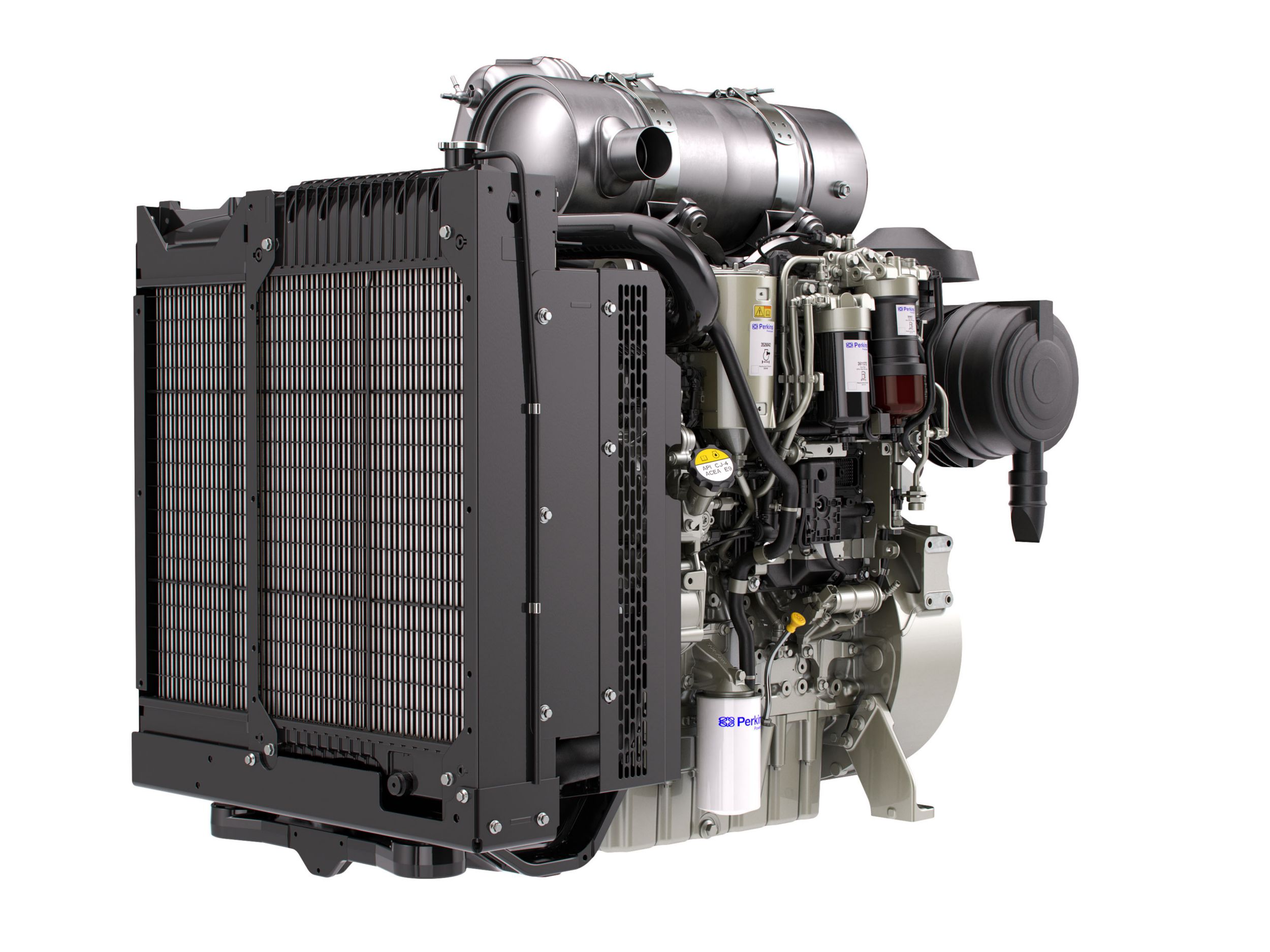

The Perkins® 1204J, the 4 cylinder option for the 1200 Series, gives you a complete power solution that meets the latest EU Stage V / U.S. EPA Tier 4 Final emission standards. The choice of options, engine configurations and robust technology allows you to integrate the 1204 range into your equipment with minimum re-engineering.
The innovative, compact and flexible design of the Perkins 1200 Series means it can be found in more than 800 different models of equipment.
Features At A Glance
A lifetime of low cost
We have designed the Perkins 1204 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through hydraulic tappets, multi-vee belts, service free aftertreatment and 500 hour oil change intervals. In addition, on the 1204F industrial engine, many service items can be located on either side of the engine to give you maximum access for servicing.
Easy to switch
The 1204 range features core technologies to support your move from Stage IIIB/Tier 4 Interim to Stage V/Tier 4 Final. Following the introduction of the latest emission standards for engines below 130 kW (175 hp), in October 2019 in the EU and in January 2020 in the U.S., our technology consistently delivers with the minimum amount of difficulty.
Like you, we believe there is no need for a trade-off between meeting emission standards and delivering on performance. The 1200 Series tackles the emissions challenge head-on and gives you improved productivity levels and fuel consumption compared to the previous generation Stage IIIB/Tier 4 Interim engines.
Ideal for downsizing
High power density, combined with excellent torque in the 1204 range allows you to select a more compact engine where previously you might have used an engine of a higher cubic capacity. This downsizing has several benefits, including saving you money and providing more space to package aftertreatment units.
Tailored for your machines
Your needs are our top priority, which is why we provide more tailored technology for OEMs than anyone else. Working closely with OEMs, we have developed the 1204 range with hundreds of variables so that it easily fits into your machine. Our 1204 range engines come with two year warranties as standard and can also be supported by extended service contracts.
EU Stage V, U.S. EPA Tier 4 FinalEU Stage V, U.S. EPA Tier 4 Final
General
Number of Cylinders
4 inline4 inline
Cycle
4 stroke4 stroke
Bore
4.1 in105 mm
Stroke
5 in127 mm
Displacement
268.5 in³4.4 l
Compression Ratio
16.5:116.5:1
Aspiration
Turbocharged aftercooledTurbocharged aftercooled
Combustion System
Direct injectionDirect injection
Rotation from Flywheel End
Anti-clockwiseAnti-clockwise
Aftertreatment
DOC+DPF+SCRDOC+DPF+SCR
Cooling System
LiquidLiquid
Engine Dimensions*
Length
57 in1450 mm
Width
32.9 in835 mm
Height
50.7 in1289 mm
Dry Weight
1523 lb691 kg
Aftertreatment Dimensions*
Length
26.8 in682 mm
Width
24 in609 mm
Height
17.8 in452 mm
Weight
143 lb65 kg
Disclaimer
Note 1
*Final dimensions dependent on selected options*Final dimensions dependent on selected options
1204J-E44TA Standard Equipment
Aftertreatment Equipment
3ʺ flex pipe kits available with a variety of elbow options for turbocharger connection
SCR Auxiliaries - A range of tanks and heated lines are available
Air System
Standard air cleaners
Electrical and Electronics
Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
Cooling System
50:50 water glycol mix
Detailed guidance on cooling system design and validation available to ensure machine reliability
Engine mounted radiator with top tank temperature of 108°C (226°F)
Flywheel and Flywheel Housing
SAE3 configuration as standard
Fuel System
Electronic high pressure common rail
Standard and heavy duty fuel filtration
General
Available with or without a balancer
Pusher or puller fan options
Oil System
Wide choice of sumps for different applications
Power Take-Off (PTO)
SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on left-hand side. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.
3ʺ flex pipe kits available with a variety of elbow options for turbocharger connection
SCR Auxiliaries - A range of tanks and heated lines are available
Air System
Standard air cleaners
Electrical and Electronics
Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
Cooling System
50:50 water glycol mix
Detailed guidance on cooling system design and validation available to ensure machine reliability
Engine mounted radiator with top tank temperature of 108°C (226°F)
Flywheel and Flywheel Housing
SAE3 configuration as standard
Fuel System
Electronic high pressure common rail
Standard and heavy duty fuel filtration
General
Available with or without a balancer
Pusher or puller fan options
Oil System
Wide choice of sumps for different applications
Power Take-Off (PTO)
SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on left-hand side. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.
