Power Rating
| Maximum Power | 121 HP 90 kW |
| Maximum Torque | 369 lb-ft @ 1500 rpm 500 Nm @ 1500 rpm |
| Rated Speed | 2000-2400rpm 2000-2400rpm |
| Minimum Power | 74 HP 55 kW |

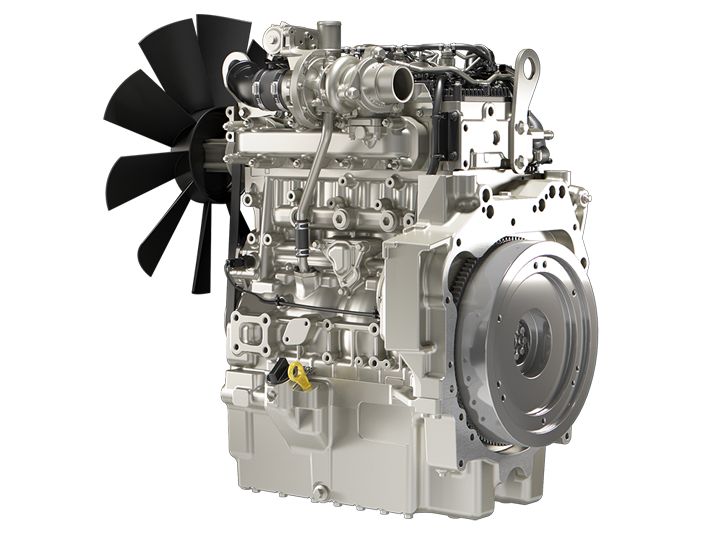

Industrial Diesel Engines 904D-E36TA for Tractors
Request Consultation Find your DistributorKey Specs
- Maximum Power
- 121 HP
- 90 kW
- Maximum Torque
- 369 lb-ft @ 1500 rpm
- 500 Nm @ 1500 rpm
- Emissions
- UN ECE R96 Stage IIIA, Brazil MAR-1
- UN ECE R96 Stage IIIA, Brazil MAR-1
Overview
The 904 Series, 3.6 engine offers the perfect solution for frameless agricultural tractors - compact, powerful and quiet. Compact packaging including structural capability for front bolster and rear transmission, including twin balancers for operator comfort and rigid mounting; the 3.6 is the cornerstone of your tractor.
Our compact engine packaging enables tight turning circles and uninterrupted sight lines with no aftertreatment required and no A-Pillar or battery box interference; the 3.6 enables simple integration and easy logistics for the original equipment manufacturer.
Powerful, with excellent performance in power, peak and low speed torque, fuel consumption and transient response; the 3.6 has all the performance required including for downsizing from larger displacement engines for your tractor and your customers.
A naturally quiet engine by design, your customers will be impressed with the noise and sound quality of the engine, making the 3.6 a natural choice for tractors used around livestock and noise sensitive areas.
Features At A Glance
A lifetime of low cost
Hydraulic tappets, multi-vee belts and 500 hour service intervals enable low cost maintenance
Dependable power
field validation program to ensure reliable power in the toughest off-highway conditions.
Quality, reliability and consistency are assured. Our facilities worldwide employ the same efficient processes,
the same tested and validated components, and the same stringent quality controls wherever your engines are manufactured.
Industry leading flexibility
Warranties and Perkins Platinum Protection
Discover more: www.perkins.com ‘Parts and Service’.
Local support, global coverage
Perkins information systems enable our distributors to quickly diagnose engine faults and identify the right parts.
The Perkins logistics operation is able to dispatch more than 45,000 different parts from stock, reaching the customer within 24 hours.
To find your local distributor: www.perkins.com ‘Our Network’.
Product Specifications for 904D-E36TA for Tractors
Emission Standards
| Emissions | UN ECE R96 Stage IIIA, Brazil MAR-1 UN ECE R96 Stage IIIA, Brazil MAR-1 |
General
| Number of Cylinders | 4 inline 4 inline |
| Cycle | 4 Stroke 4 Stroke |
| Bore | 3.9 in 98 mm |
| Stroke | 4.7 in 120 mm |
| Displacement | 220.9 in³ 3.6 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | - - |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 26.8 in 681 mm |
| Width | 22.2 in 564 mm |
| Height | 33.7 in 855 mm |
| Dry Weight | 992 lb 450 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
904D-E36TA for Tractors Standard Equipment
Electrical and Electronics
- 12V systems
- Data interface via CANbus J1939
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
- Wide choice of interfaces for common transmissions
Fuel System
- Electronic high pressure common rail
- Fuel filter - chassis mounted
- Water sensor included - early warning for operator
General
- Structual sump including twin balancers for front bolster mounting
- Cold-start capable with standard equipment to -25°C
- Supplied painted or lacquered
- Ag backplate for transmission mounting
Oil System
- Oil filters. Mounting options available on either side of the engine, plus remote
- Dipsticks. Choice of position and length
- Oil fillers. Multiple locations on engine to allow for choice of service access
- High incline sump. 25° continuous in all directions
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available
