Our 1200 Series Tier 4 interim engines offer a smart solution for customers operating in EU Stage IIIB/U.S. EPA Tier 4 Interim equivalent territories. Ideally suited to large and medium-sized machines for construction, agriculture and materials handling – and also available as an IOPU – there's a Perkins 1200 Series engine for you. With common hook up points and multiple options, our solutions support your move to the more stringent Stage IV/Tier 4 Final emission standards.

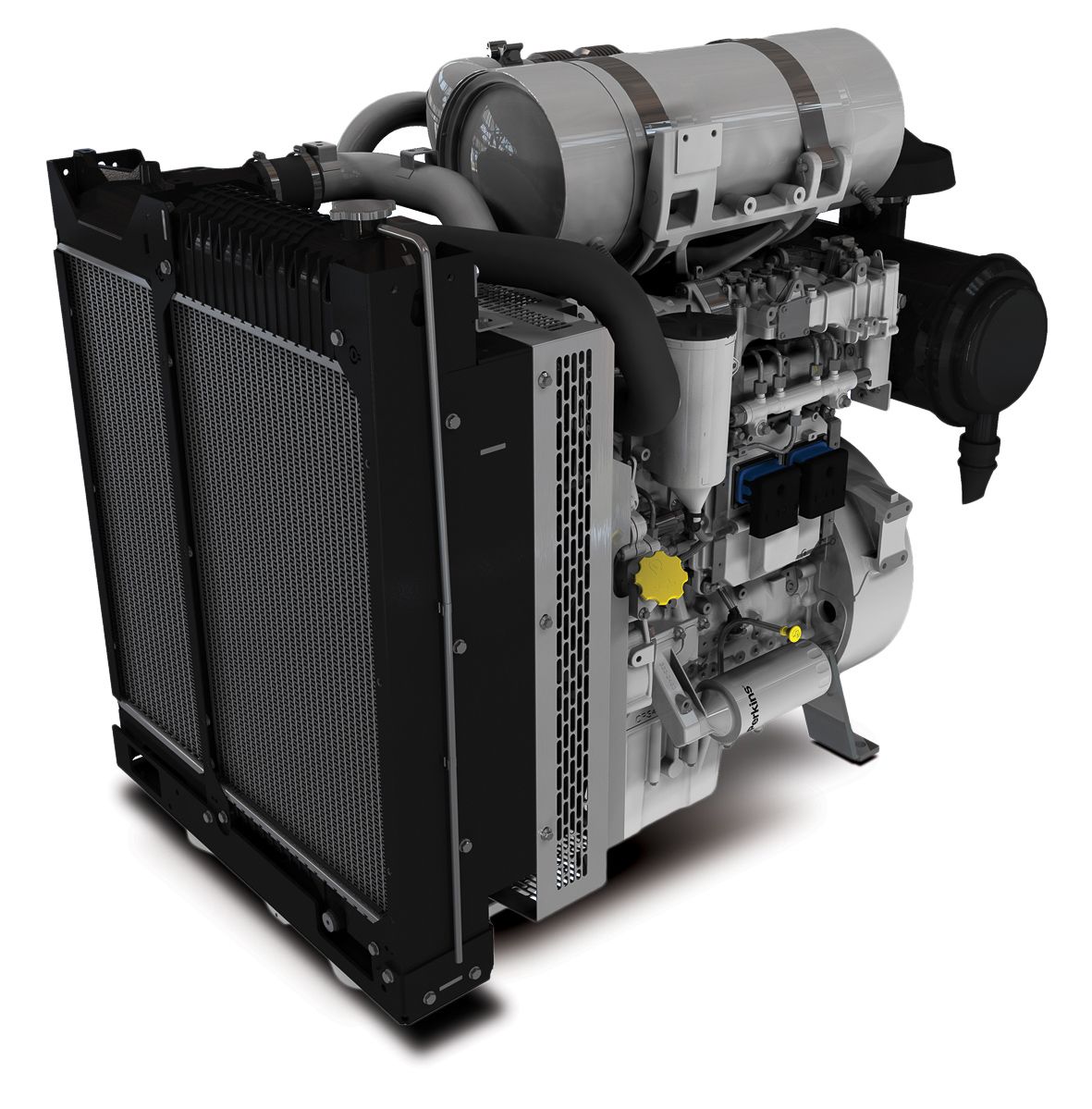

1204E-E44TA INDUSTRIAL OPEN POWER UNIT (IOPU)

4.4 litre

74.5-110.1 kW (100-147 hp)

Designed to meet EU Stage IIIB/U.S. EPA Tier 4 Interim equivalent emission standards

Our IOPUs are designed to be productive and to offer the impressive power density that allows our customers to maximise their profitability. The 1204E-E44TA is turbocharged.

Features At A Glance

A lifetime of low cost

We designed our 1200 Series Tier 4 interim engines with optimised fuel consumption in mind, matching them to the operating cycles of a wide range of equipment and applications.

Low cost maintenance is achieved through hydraulic tappets, multi-vee belts, service free aftertreatment and 500 hour oil-change intervals.

Easy to switch

All the engines in our 1200 Series share common hook up points and option availability, ensuring our solutions can support your move to the more stringent Stage IV/Tier 4 Final emission standards. Our technology consistently delivers with a minimum of difficulty.

Like you, we believe there is no need for a trade-off between meeting emission standards and delivering on performance. The 1200 Series tackles the emissions challenge head-on and gives you improved productivity levels and fuel consumption compared to previous generation Stage IIIA/Tier 3 engines.

Ideal for downsizing

High power density, combined with excellent torque in our 1200 Series Tier 4 interim range allows you to select a more compact engine where previously you might have used an engine of a higher cubic capacity. This downsizing has several benefits, including the potential to save you money and provide more space to package aftertreatment units.

Tailored for your machines

Your needs are our top priority, which is why we provide tailored technology solutions. Working closely with OEMs, we have developed the 1200 Series with hundreds of variables so that it easily fits into your machine.

Our 1200 Series interim engines come with two year warranties as standard and great value extended service contracts.

Full Specifications Standard Equipment

Product Specifications for 1204E-E44TA

Download Print

Power Rating

Maximum Power	147 HP 110.1 kW
Maximum Torque	413 lb-ft @ 1400 rpm 560 Nm @ 1400 rpm
Rated Speed	2200 rpm 2200 rpm
Minimum Power	100 HP 74.5 kW

Emission Standards

Emissions

EU Stage IIIB/U.S. EPA Tier 4 Interim equivalent EU Stage IIIB/U.S. EPA Tier 4 Interim equivalent

General

Number of Cylinders	4 verticle inline 4 verticle inline
Cycle	4 stroke 4 stroke
Bore	4.13 in 105 mm
Stroke	5 in 127 mm
Displacement	268.5 in³ 4.4 l
Compression Ratio	16.5:1 16.5:1
Aspiration	Turbocharged aftercooled Turbocharged aftercooled
Combustion System	Direct injection Direct injection
Rotation from Flywheel End	Anti-clockwise Anti-clockwise
Cooling System	Liquid Liquid

Engine Dimensions*

Length	56.4 in 1433 mm
Width	32.3 in 820 mm
Height	44.3 in 1126 mm
Dry Weight	1433 lb 650 kg

Aftertreatment Dimensions*

Length	32.6 in 828 mm
Width	14.3 in 365 mm
Height	11.8 in 301 mm
Diameter	10.6 in 270 mm
Weight	81.6 lb 37 kg

Disclaimer

Note 1

*Final dimensions dependent on selected options *Final dimensions dependent on selected options

1204E-E44TA Standard Equipment

Print

Aftertreatment Equipment

3" flex pipe kits available with a variety of elbow options for turbocharger connection

DOC - Diesel Oxidation Catalyst

DPF - Diesel Particulate Filter

Air System

Standard air cleaners

Electrical and Electronics

Flexible and configurable software features and J1939 standard communications I/O

Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments

Cooling System

50:50 water glycol mix

Detailed guidance on cooling system design and validation available to ensure machine reliability

Engine mounted radiator with top tank temperature 108°C (226°F)

Flywheel and Flywheel Housing

Wide choice of drivetrain interfaces, including SAE No. 2 and SAE No. 3 configurations

Fuel System

Electronic high pressure common rail

Standard and heavy duty fuel filtration

General

Balancer option available

Pusher or puller fan options

Oil System

Choice of sumps for different applications

Power Take-Off (PTO)

SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on front of the engine on some applications

See how 1204E-E44TA compares against frequently compared products.

Industrial 1204E-E44TA

1204E-E44TA

Maximum Power: 147 HP; 110.1 kW
Maximum Torque: 413 lb-ft @ 1400 rpm; 560 Nm @ 1400 rpm
Emissions: EU Stage IIIB/U.S. EPA Tier 4 Interim equivalent; EU Stage IIIB/U.S. EPA Tier 4 Interim equivalent

Selected Model

Industrial 1106D-E70TA

1106D-E70TA

Maximum Power: 275 HP; 205 kW
Maximum Torque: 774 lb-ft @ 1400 rpm; 1050 Nm @ 1400 rpm
Emissions: UN ECE R96 Stage IIIA, Brazil MAR-1, China NRIII; UN ECE R96 Stage IIIA, Brazil MAR-1, China NRIII

Model Details

Industrial 1204J-E44TA

1204J-E44TA

Maximum Power: 147.6 HP; 110 kW
Maximum Torque: 413 lb-ft @ 1400 rpm; 560 Nm @ 1400 rpm
Emissions: EU Stage V, U.S. EPA Tier 4 Final; EU Stage V, U.S. EPA Tier 4 Final

Model Details
