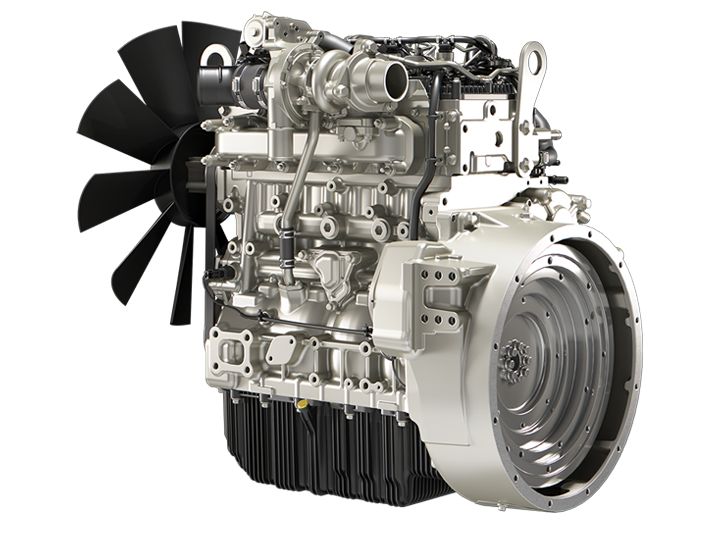

904D-E36TA Industrial Diesel Engine

Industrial Diesel Engines 904D-E36TA

Request Consultation Find your Distributor

Key Specs

Maximum Power
121 hp
90 kW
Maximum Torque
369 lb-ft @ 1500 rpm
500 Nm @ 1500 rpm
Emissions
UN ECE R96 Stage IIIA, Brazil MAR-1
UN ECE R96 Stage IIIA, Brazil MAR-1

Overview

The 904 Series, 3.6 litre offers a compact power solution for off-highway machines in construction, agriculture and industrial.The technology has been chosen not only to meet emissions standards but also to provide excellent performance in power, peak and low speed torque, fuel consumption and transient response.Reliability and easy service access are integral to the design of the 904. It is available with a range of installation options to enable OEMs to minimise the size of the engine bay of their machines.

Product Specifications for 904D-E36TA

Maximum Power 121 hp 90 kW
Maximum Torque 369 lb-ft @ 1500 rpm 500 Nm @ 1500 rpm
Rated Speed 2000 - 2400 rpm 2000 - 2400 rpm
Minimum Power 74 hp 55 kW
Emissions UN ECE R96 Stage IIIA, Brazil MAR-1 UN ECE R96 Stage IIIA, Brazil MAR-1
Number of Cylinders 4 inline 4 inline
Cycle 4 stroke 4 stroke
Bore 3.9 in 98 mm
Stroke 4.7 in 120 mm
Displacement 220 in³ 3.6 l
Compression Ratio 17.0:1 17.0:1
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Aftertreatment - -
Cooling System Liquid Liquid
Length 26.3 in 667 mm
Width 22.2 in 564 mm
Height 31 in 787 mm
Dry Weight 840 lb 381 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options

904D-E36TA Standard Equipment

Electrical and Electronics

  • 12 or 24V systems
  • Data interface via CANbus J1939
  • Full electronic control
  • Glow plugs for best cold starting with minimum battery impact
  • High power alternator and starter motor options
  • Sensors and robust wiring harness included

Flywheel and Flywheel Housing

  • SAE3 or SAE4 flywheel housing
  • Wide choice of interfaces for common transmissions and hydraulic pumps

Fuel System

  • Electronic high pressure common rail
  • Fuel filter - chassis mounted
  • Water sensor included - early warning for operator

General

  • Cold-start capable with standard equipment to -20°C
  • Supplied painted or lacquered

Oil System

  • Oil filters. Mounting options available on either side of the engine
  • Dipsticks. Choice of position and length
  • Oil fillers. Multiple locations on engine to allow for choice of service access
  • High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes

Power Take-Off (PTO)

  • SAE-A and SAE-B interfaces available
