Power Rating
| Maximum Power | 456 HP 340 kW |
| Maximum Torque | 1540 lb-ft @ 1400 rpm 2088 Nm @ 1400 rpm |
| Rated Speed | 1800-2200 rpm 1800-2200 rpm |
| Minimum Power | 335 HP 250 kW |
Industrial Open Power Units 1706EA-E93TA
1706EA-E93TA
Request Consultation Find your DistributorKey Specs
- Maximum Power
- 456 HP
- 340 kW
- Maximum Torque
- 1540 lb-ft @ 1400 rpm
- 2088 Nm @ 1400 rpm
- Emissions
- China NRIV
- China NRIV
Overview

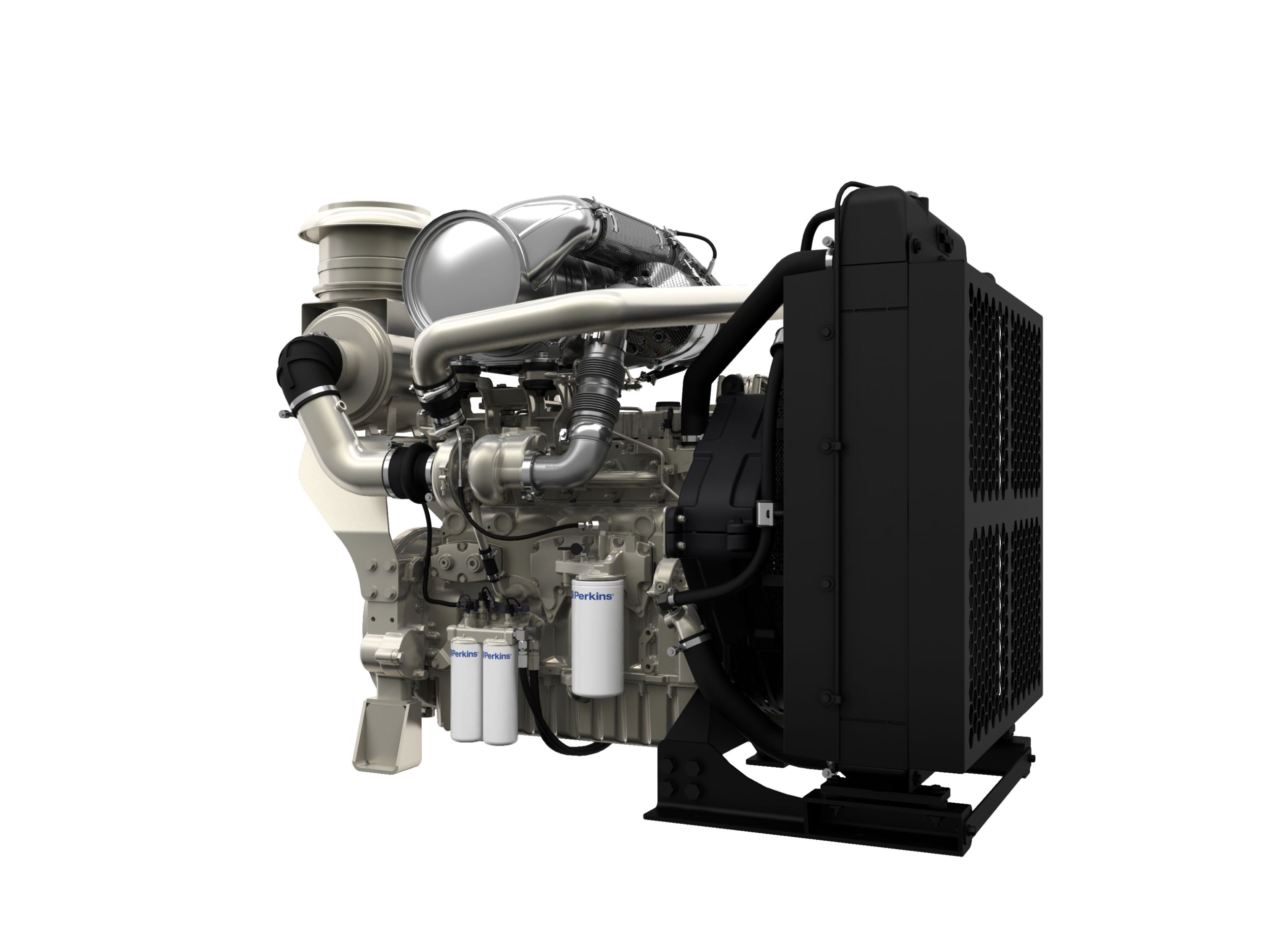

The Perkins® 1706J/EA-E93TA IOPU provides a complete plug-and-play power solution to meet EU Stage V, U.S. EPA Tier 4 Final, and other equivalent emissions standards. The 1706EA-E93TA IOPU meets China Nonroad Stage IV emissions standards. The IOPU configurations come equipped with compact technology engine-mounted aftertreatment design, an integrated cooling pack, and full wire harnessing coupled to a single engine-mounted ECM.
Features At A Glance
Low cost Installation
Beyond basic industrial configurability, the IOPU provides customers with a pre-mounted over-head aftertreatment system, an engine-mounted air intake cleaner, and a full cooling pack which includes the radiator, a fan, and lines (both air and coolant). The IOPU variations provide customers with the ability to drop in a complete configuration, streamlining final assembly and minimising installation costs.A lifetime of low cost
We have designed the Perkins 1700 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide range of equipment and applications. Low cost maintenance is achieved through a minimum 5,000 hour service interval and 500 hour oil change intervals.Dependable power
The Perkins 1700 range is built off a proven core, where it has been used in the toughest operating conditions. Built in a world class manufacturing facility, you can be assured of many hours of productive life. With an aftertreatment system that works when you need it to, you won't have to worry about any downtime impacting your days work.Think global, act local
The Perkins distributor network offers dedicated experience and knowledge of Perkins diesel engines and provides direct customer focus, protecting your assets through extended service contract options.Product Specifications for 1706EA-E93TA
Emission Standards
| Emissions | China NRIV China NRIV |
General
| Number of Cylinders | In-line 6 In-line 6 |
| Cycle | 4 stroke 4 stroke |
| Bore | 4.5 in 115 mm |
| Stroke | 5.9 in 149 mm |
| Displacement | 567.5 in³ 9.3 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 83 in 2110 mm |
| Width | 49 in 1246 mm |
| Height | 65 in 1642 mm |
| Dry Weight | 3563 lb 1616 kg |
1706EA-E93TA Standard Equipment
Air System
- Air-to-air aftercooled
- Front or rear exhaust configurations available
Control System
- Automatic altitude compensation
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated, advanced electronic control module (ECU)
- Over-foam wiring harness
- Power compensated for fuel temperature
- Remote fan control
Cooling System
- Centrifugal belt-driven water pump
- Detailed guidance on cooling system design and validation available to ensure machine reliability
Flywheel and Flywheel Housing
- Standard SAE No. 1 flywheel housing with SAE No. 14 or 140 flywheels
Fuel System
- High pressure common rail fuel system
- Oil-lubricated high pressure fuel and mechanical fuel transfer pump combination
- Remote fuel filter configuration available
General
- Lifting eyes
- Vibration damper
Oil System
- Choice of front, rear or centre sumps
- Gear-driven oil pump
- Open crankcase ventilation system with fumes disposal (optional OCV filter system)
- Oil cooler
- Oil dipstick
- Oil filler
Power take-off
- Available SAE No. 1 flywheel housings with rear power take-off (PTO) drive options for SAE B, SAE C, or a combination
- Engine power can also be taken from the front of the engine on some applications
1706EA-E93TA Optional Equipment
Industrial Power Unit
- Factory-installed cooling pack which includes the radiator, the air-to-air aftercooler (ATAAC), coolant lines to and from the radiator, and air lines to and from the ATAAC.
- Factory-installed engine-mounted aftertreatment system, pre-connected exhaust air lines, and air cleaners
- Factory-installed instrument / control panels embedded with telematics units
