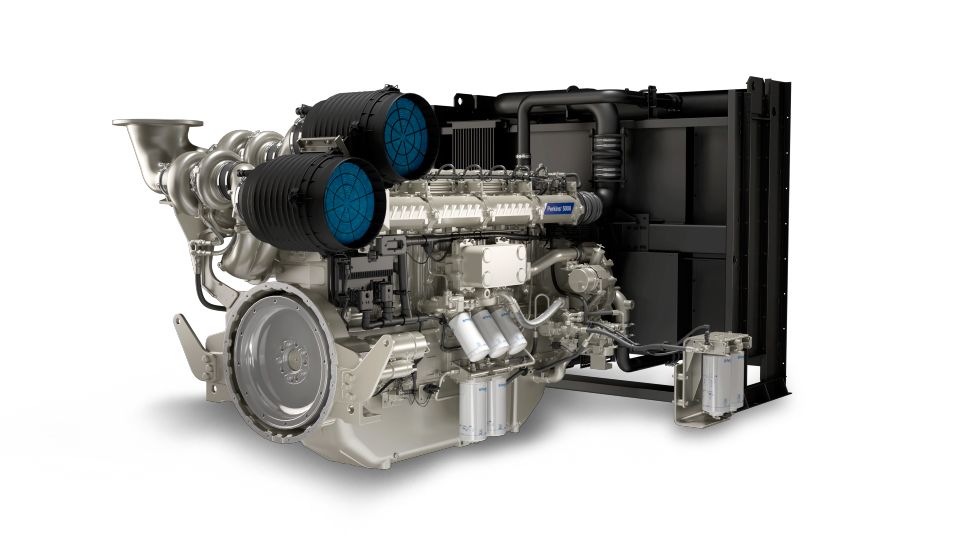

5008A-E30TAG ElectropaK

Electric Power Generation 5008A-E30TAG

Request Consultation Find your Distributor

Key Specs

Gross Mechanical Output: 650-1094 kW; 650-1094 kW

Typical Electrical Output: 728-1250 kVA (582-1000 kWe); 728-1250 kVA (582-1000 kWe)

Emissions: Fuel Optimised; Fuel Optimised

5008A-E30TAG
Change model

Overview

The Perkins® 5008A-E30TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical applications market and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer low daily operating costs.

Features At A Glance

The 5000 Series delivers maximised productivity through outstanding load acceptance, achieving NFPA110 Type 10 and ISO 8528-5 G2 and G3 performance class and delivers high altitude capability.

The engine build and performance have been designed from the ground up with ultimate productivity and dependability in mind, so customers can be confident that power will be available when required.

They have been tested around the world, in the harshest environments, to deliver performance, no matter the conditions.

Excellent oil consumption through dedicated piston, ring and liner assembly and low fuel consumption deliver minimised daily operating costs.

Design of core engine components mean the 5000 Series delivers more power, more quickly, regardless of the demands of the application or the environment in which it is placed.

A single point customer electronics connection supports ease of integration and service accessibility is provided from a single side with 500 hours or two year oil and fuel service interval whichever comes first.

The 5000 Series utilises advanced technology, with full authority electronics, that easily integrate into the customer’s chosen telematic solutions and is optimised for efficiency in fuel consumption.

Specifications Standard Equipment

Product Specifications for 5008A-E30TAG

Total Power Range

Gross Mechanical Output	650-1094 kW 650-1094 kW
Typical Electrical Output	728-1250 kVA (582-1000 kWe) 728-1250 kVA (582-1000 kWe)
Rated Speed	1500 rpm 1500 rpm

Emission Standards

Emissions

Fuel Optimised Fuel Optimised

50 Hz Typical Electrical Output

Prime	910-1124 kVA (728-900 kWe) 910-1124 kVA (728-900 kWe)
Standby	1000-1250 KVA (800-1000 kWe) 1000-1250 KVA (800-1000 kWe)
Baseload	728-900 kVA (582-720 kWe) 728-900 kVA (582-720 kWe)

General

Number of Cylinders	8 8
Bore	160 mm 6.3 in
Stroke	7.5 in 190 mm
Displacement	1864.89 in³ 30.56 l
Compression Ratio	13.8:1 13.8:1
Aspiration	Turbocharged and air-to-air chargecooled Turbocharged and air-to-air chargecooled
Combustion System	Direct injection Direct injection
Rotation from Flywheel End	Anti-clockwise Anti-clockwise
Cooling System	Watercooled Watercooled
Aftertreatment	N/A N/A
Typical Alternator Efficiency	94% 94%
Switchable	No No

ElectropaK Dimensions

Length	3468 mm 136.5 in
Width	86.4 in 2194 mm
Height	1918 mm 75.5 in
Dry Weight	9248.4 lb 4195 kg

Engine Dimensions*

Length	2716.88 mm 107 in
Width	1573.8 mm 62 in
Height	68.7 in 1746.7 mm
Dry Weight	3455 kg 7616 lb

Disclaimer

Note 1

*Final dimensions dependent on selected options *Final dimensions dependent on selected options

Definitions

Prime Power	Unlimited hours usage with an average load factor of 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. Unlimited hours usage with an average load factor of 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation.
Standby Power	Limited to 500 hours usage with an average load factor of 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted. Limited to 500 hours usage with an average load factor of 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted.
Baseload	Unlimited hours usage with an average load factor of 100 percent of the published continuous operating power. No overload is permitted on continuous operating power. Unlimited hours usage with an average load factor of 100 percent of the published continuous operating power. No overload is permitted on continuous operating power.

5008A-E30TAG Standard Equipment

Electro unit or ElectropaK

Both

Radiator fitted

Loose

Fuel filter

Engine mounted

Water separator

N/A

Fuel priming pump (manual/electric)

Electric

Fuel cooler

Not required for most installations

Air filter

Engine mounted

Engine ECM

Engine mounted

Wiring harness

To ECM

All connectors to single customer interface

Temperature and oil pressure for automatic stop/alarm

Configurable

Product Specifications for 5008A-E30TAG

Download Print

Total Power Range

Gross Mechanical Output	650-1094 kW 650-1094 kW
Typical Electrical Output	728-1250 kVA (582-1000 kWe) 728-1250 kVA (582-1000 kWe)
Rated Speed	1500 rpm 1500 rpm

Emission Standards

Emissions

Fuel Optimised Fuel Optimised

50 Hz Typical Electrical Output

Prime	910-1124 kVA (728-900 kWe) 910-1124 kVA (728-900 kWe)
Standby	1000-1250 KVA (800-1000 kWe) 1000-1250 KVA (800-1000 kWe)
Baseload	728-900 kVA (582-720 kWe) 728-900 kVA (582-720 kWe)

General

Number of Cylinders	8 8
Bore	160 mm 6.3 in
Stroke	7.5 in 190 mm
Displacement	1864.89 in³ 30.56 l
Compression Ratio	13.8:1 13.8:1
Aspiration	Turbocharged and air-to-air chargecooled Turbocharged and air-to-air chargecooled
Combustion System	Direct injection Direct injection
Rotation from Flywheel End	Anti-clockwise Anti-clockwise
Cooling System	Watercooled Watercooled
Aftertreatment	N/A N/A
Typical Alternator Efficiency	94% 94%
Switchable	No No

ElectropaK Dimensions

Length	3468 mm 136.5 in
Width	86.4 in 2194 mm
Height	1918 mm 75.5 in
Dry Weight	9248.4 lb 4195 kg

Engine Dimensions*

Length	2716.88 mm 107 in
Width	1573.8 mm 62 in
Height	68.7 in 1746.7 mm
Dry Weight	3455 kg 7616 lb

Disclaimer

Note 1

*Final dimensions dependent on selected options *Final dimensions dependent on selected options

Definitions

Prime Power	Unlimited hours usage with an average load factor of 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. Unlimited hours usage with an average load factor of 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation.
Standby Power	Limited to 500 hours usage with an average load factor of 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted. Limited to 500 hours usage with an average load factor of 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted.
Baseload	Unlimited hours usage with an average load factor of 100 percent of the published continuous operating power. No overload is permitted on continuous operating power. Unlimited hours usage with an average load factor of 100 percent of the published continuous operating power. No overload is permitted on continuous operating power.

5008A-E30TAG Standard Equipment

Print

Electro unit or ElectropaK

Both

Radiator fitted

Loose

Fuel filter

Engine mounted

Water separator

N/A

Fuel priming pump (manual/electric)

Electric

Fuel cooler

Not required for most installations

Air filter

Engine mounted

Engine ECM

Engine mounted

Wiring harness

To ECM

All connectors to single customer interface

Temperature and oil pressure for automatic stop/alarm

Configurable
