Total Power Range
| Gross Mechanical Output | 907-1107 kWm 907-1107 kWm |
| Typical Electrical Output | 1012-1250 kVA (810-1000 kWe) 1012-1250 kVA (810-1000 kWe) |
| Rated Speed | 1800 rpm 1800 rpm |
Electric Power Generation 5008C-E30TAG
Request Consultation Find your DistributorKey Specs
- Gross Mechanical Output
- 907-1107 kWm
- 907-1107 kWm
- Typical Electrical Output
- 1012-1250 kVA (810-1000 kWe)
- 1012-1250 kVA (810-1000 kWe)
- Emissions
- US EPA Stationary Emergency-Use-Only (Tier 2)
- US EPA Stationary Emergency-Use-Only (Tier 2)
Overview
The Perkins® 5008C-E30TAG has been designed to offer reliable power for the emergency standby and critical applications market, including data centres and hospitals among others.
Engineered and built specifically for the power generation market, the Perkins 5000 Series is a power-packed engine range built to be dependable, versatile and offer lower emissions to meet regulatory standards.
Benefits
100% block load capability
Up to 750 hours / 2 years service interval
Up to 1107 kW from its 30 litre engine (36.9 kW/l)
Features At A Glance

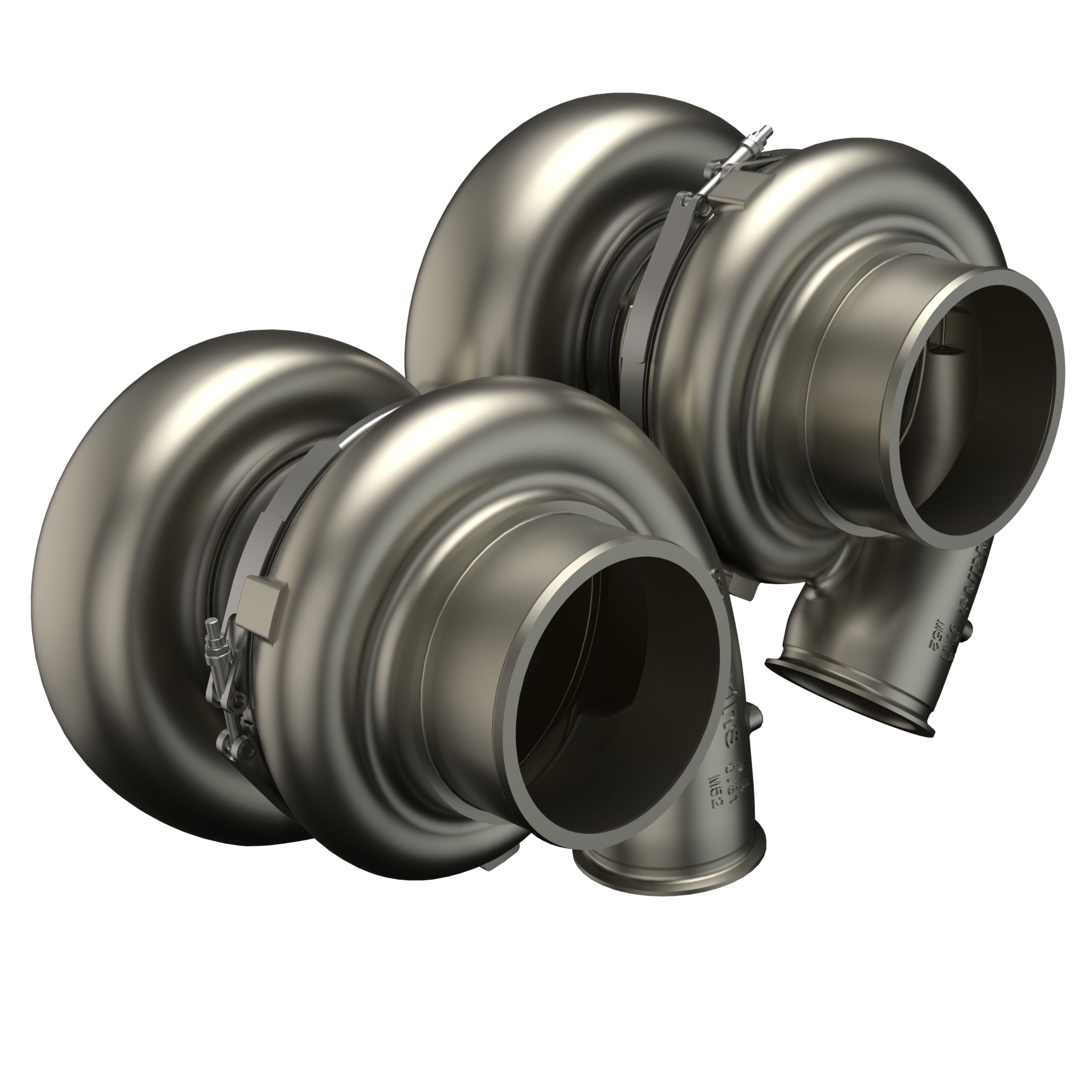

Maximised productivity
The engine build and performance have been designed with ultimate productivity and dependability in mind, so customers can be confident that power will be available when required.
They have been tested around the world, in the harshest environments imaginable, to ensure that performance, no matter the conditions.

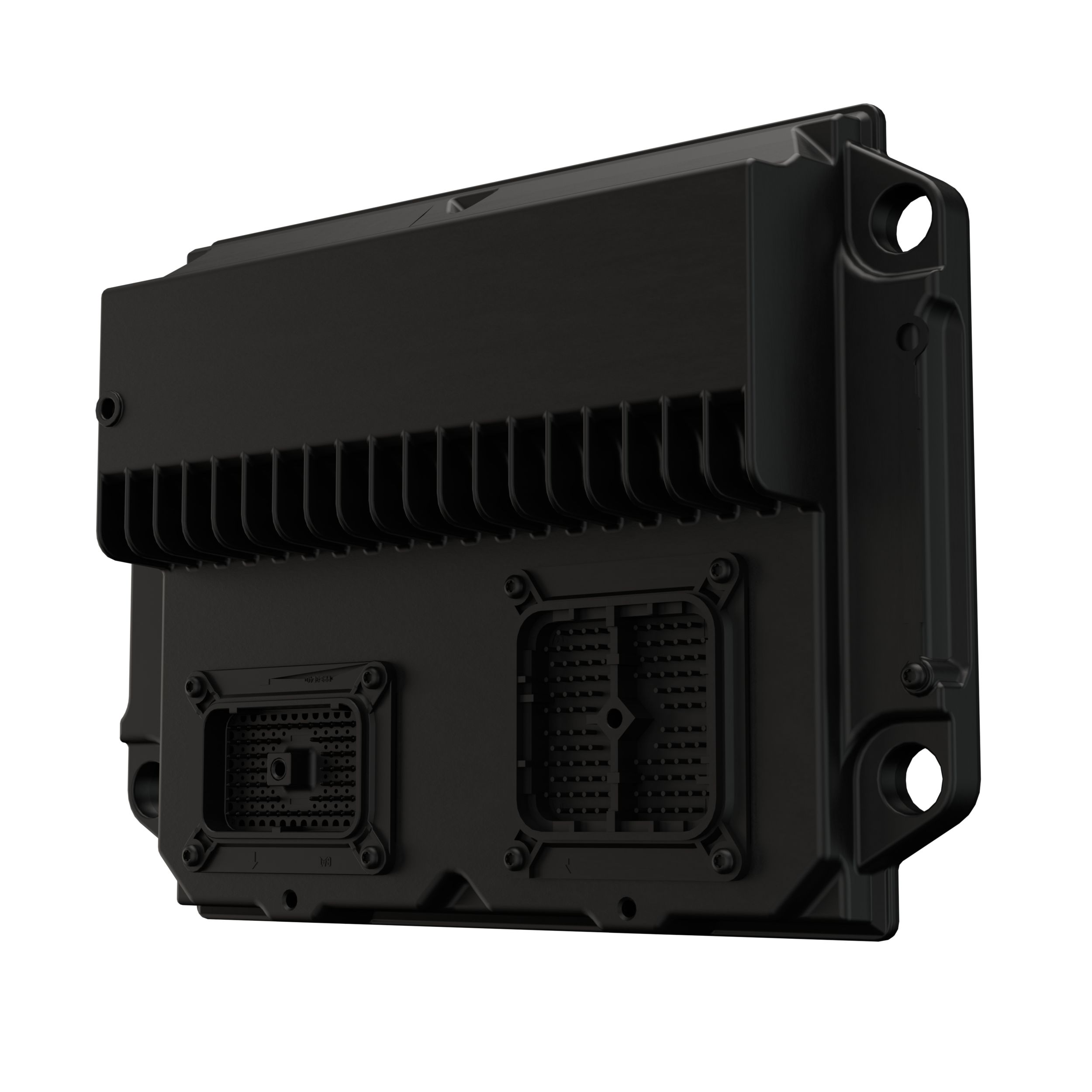

Advanced technology
We offer an optional closed crankcase ventilation system to reduce crankcase emissions further, if required.
Integration and service accessibility

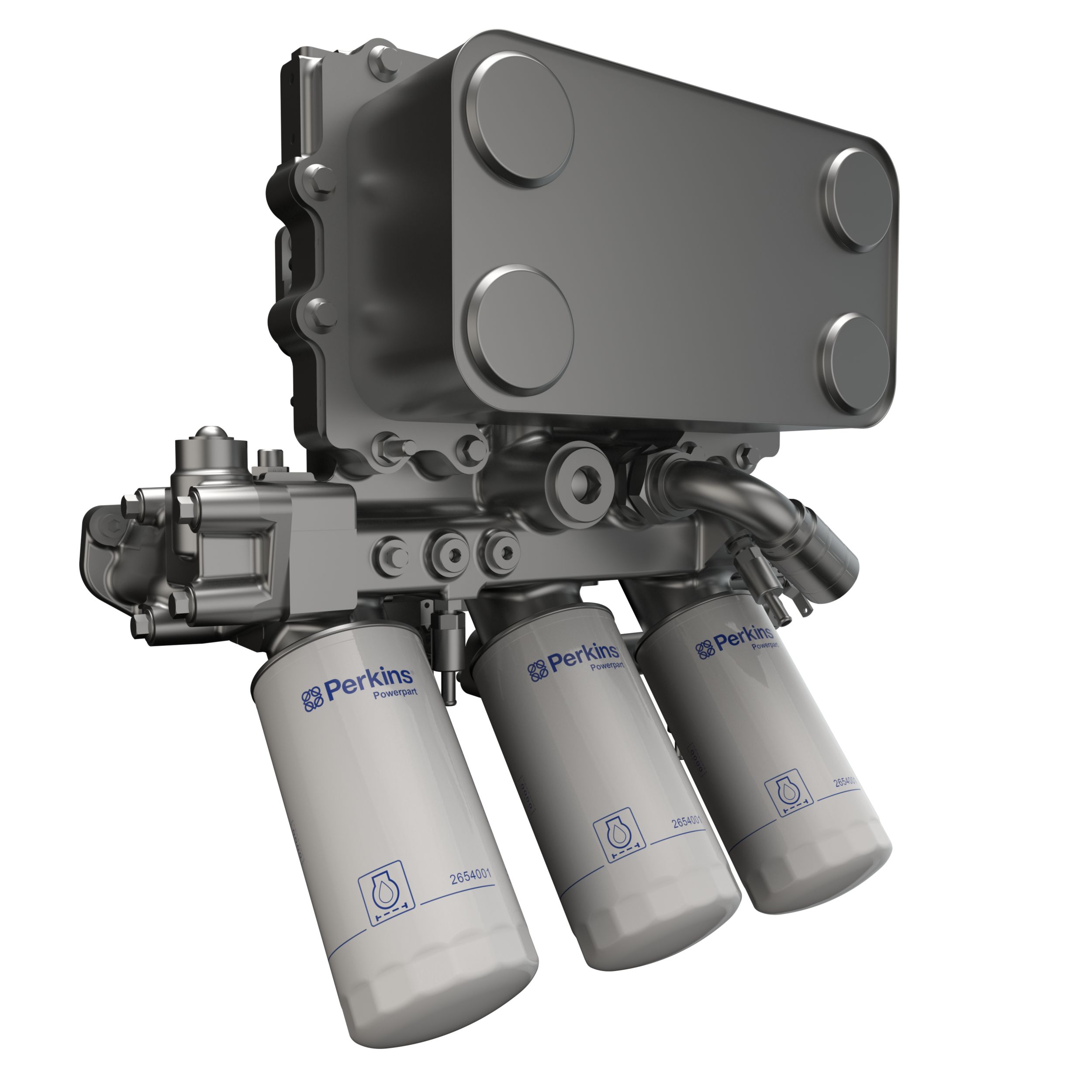

Daily operating costs
Product Specifications for 5008C-E30TAG
Emission Standards
| Emissions | US EPA Stationary Emergency-Use-Only (Tier 2) US EPA Stationary Emergency-Use-Only (Tier 2) |
60 Hz Typical Electrical Output
| Prime | 810-900 kWe 810-900 kWe |
| Standby | 900-1000 kWe 900-1000 kWe |
General
| Number of Cylinders | 8 vertical in-line 8 vertical in-line |
| Bore | 6.3 in 160 mm |
| Stroke | 7.5 in 190 mm |
| Displacement | 1865 in³ 30.561 l |
| Compression Ratio | 12.8:1 12.8:1 |
| Aspiration | Turbocharged and air-to-air chargecooled Turbocharged and air-to-air chargecooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise, viewed from flywheel end Anti-clockwise, viewed from flywheel end |
| Cooling System | Watercooled Watercooled |
| Aftertreatment | - - |
| Typical Alternator Efficiency | 95 % 95 % |
| Switchable | No No |

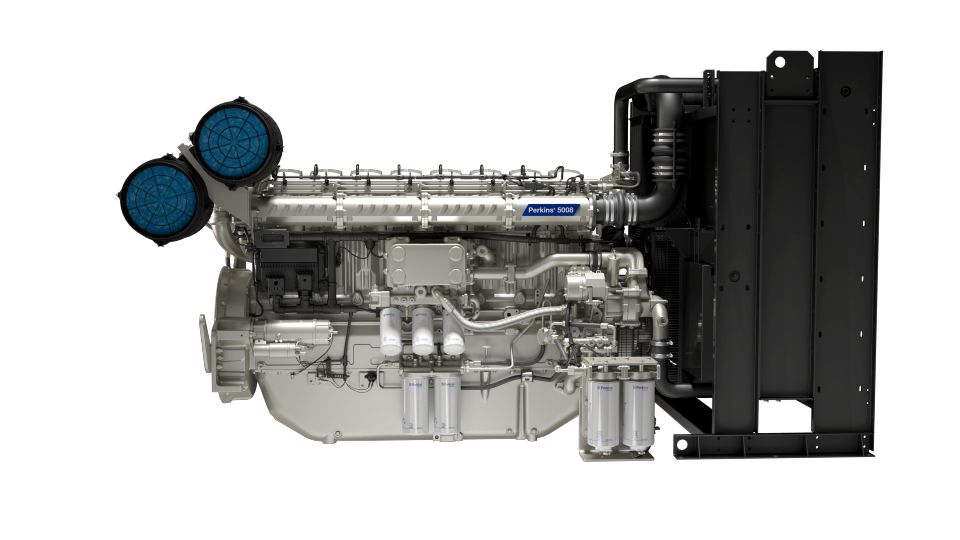

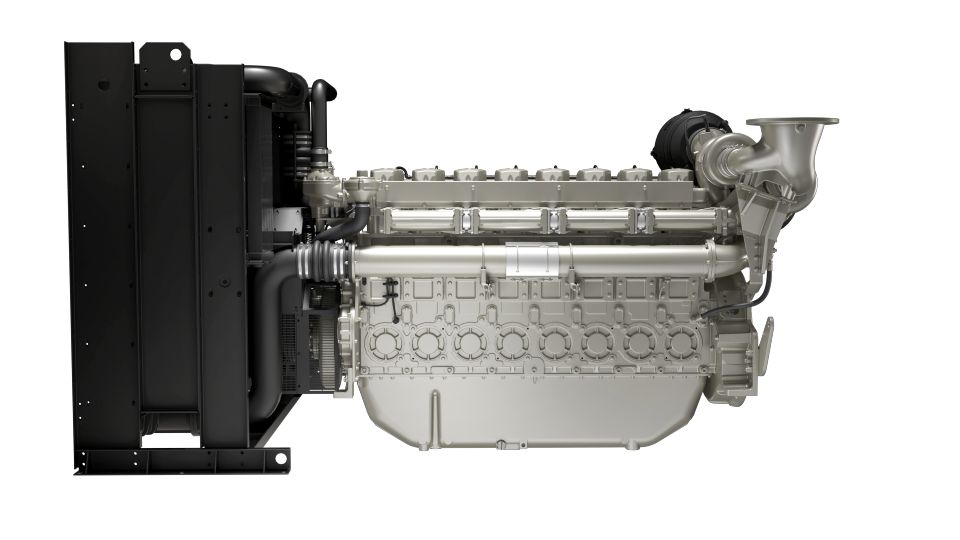

ElectropaK Dimensions
| Length | 136.6 in 3469 mm |
| Width | 86.4 in 2194 mm |
| Height | 75.6 in 1919 mm |
| Dry Weight | 9612 lb 4360 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
5008C-E30TAG Standard Equipment
Air inlet system
- Engine mounted air filter
Cooling system
- Radiator supplied loose
- Fan and fan guards supplied
Electrical equipment
- Engine mounted ECM
- Wiring harness to ECM and all connectors to single customer interface supplied
Elecrtical equipment
- Starter motor and battery charging alternator
Flywheel and flywheel housing
- Flywheel and flywheel housing options
Fuel system
- Engine mounted fuel filter
- Electric fuel priming pump
- Fuel cooler supplied
General
- Temperature and oil pressure for automatic stop/alarm configurable
See how 5008C-E30TAG compares against frequently compared products.
Electric Power Generation
5008C-E30TAG
Selected
- Gross Mechanical Output
- 907-1107 kWm
- 907-1107 kWm
- Typical Electrical Output
- 1012-1250 kVA (810-1000 kWe)
- 1012-1250 kVA (810-1000 kWe)
- Emissions
- US EPA Stationary Emergency-Use-Only (Tier 2)
- US EPA Stationary Emergency-Use-Only (Tier 2)
Electric Power Generation
5008AC-E30TAG
- Gross Mechanical Output
- 650-1094 kW
- 650-1094 kW
- Typical Electrical Output
- 729-1250 kVA (582-1000 kWe)
- 729-1250 kVA (582-1000 kWe)
- Emissions
- Equivalent to U.S. EPA Tier 2
- Equivalent to U.S. EPA Tier 2
Electric Power Generation
5008A-E30TAG
- Gross Mechanical Output
- 650-1094 kW
- 650-1094 kW
- Typical Electrical Output
- 728-1250 kVA (582-1000 kWe)
- 728-1250 kVA (582-1000 kWe)
- Emissions
- Fuel Optimised
- Fuel Optimised
