2606C-E13TAG

Electric Power Generation 2606C-E13TAG

Request Consultation Find your Distributor

Key Specs

Gross Mechanical Output
321-518 kW
321-518 kW
Typical Electrical Output
350-563 kVA (280-450 kWe)
350-563 kVA (280-450 kWe)
Emissions
Emits equivalent to EU Stage II
Emits equivalent to EU Stage II

Overview

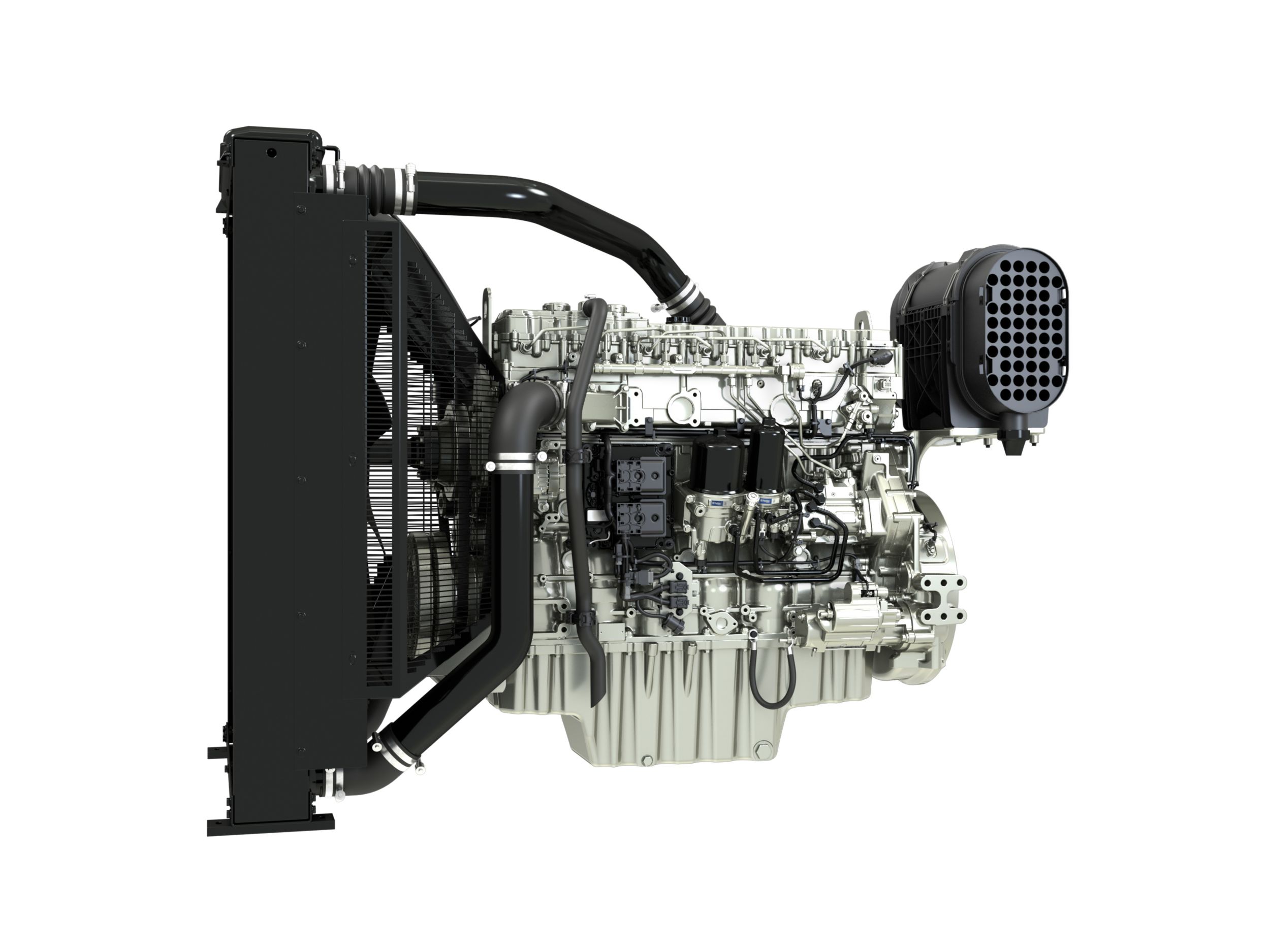

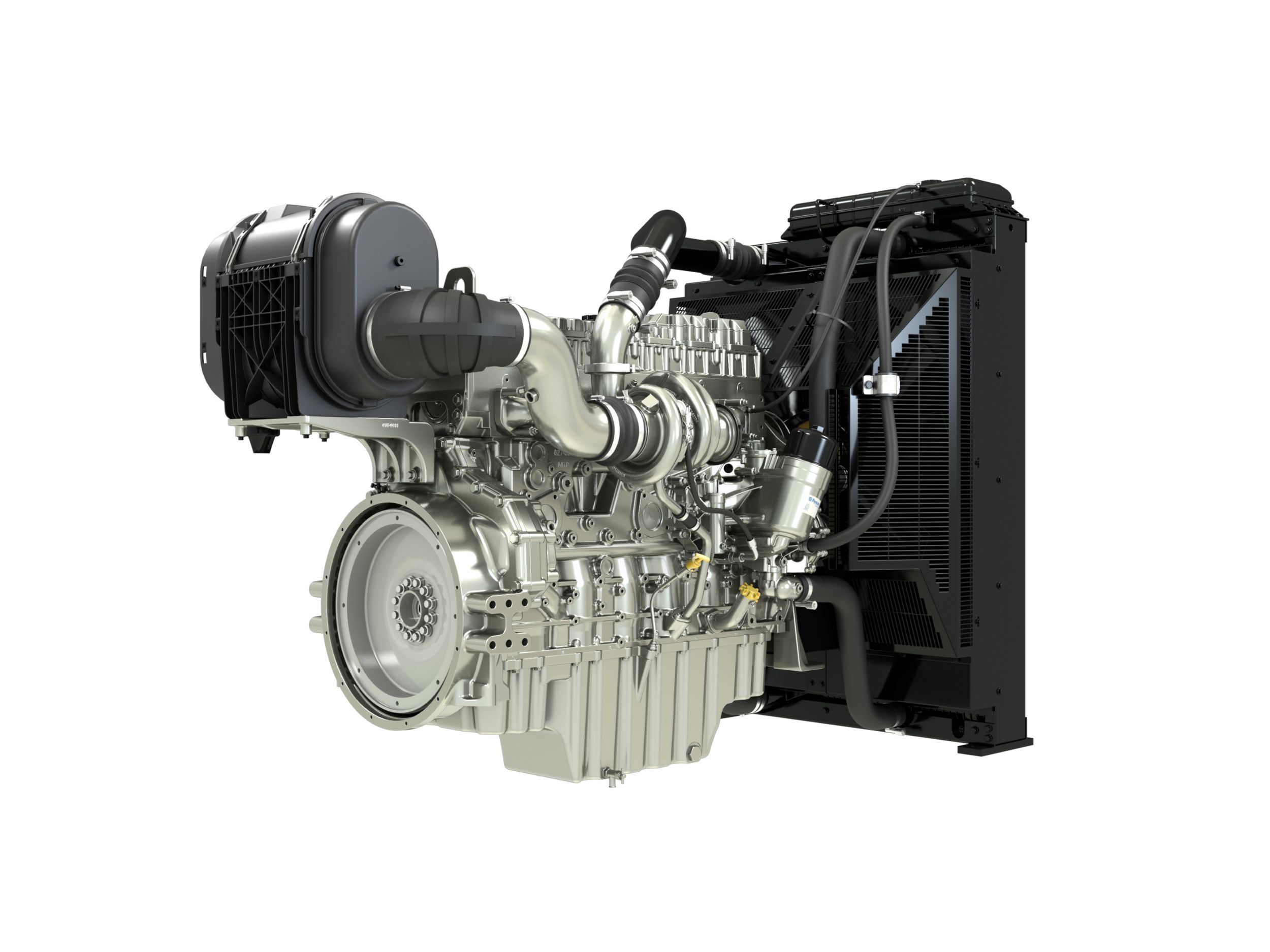

The Perkins® 2606C-E13TAG is a 6 cylinder, fully electronic, common-rail direct injected, turbocharged, air-to-air aftercooled, generator set engine. The 2606C-E13TAG ElectropaK emits equivalent to EU Stage II, and can switch between 50 Hz and 60 Hz frequencies. The 2606C-E13TAG models can be changed over to respective fuel optimised 2606A-E13TAG model variants for countries without emission standards.

Product Specifications for 2606C-E13TAG

Gross Mechanical Output 321-518 kW 321-518 kW
Typical Electrical Output 350-563 kVA (280-450 kWe) 350-563 kVA (280-450 kWe)
Rated Speed 1500/1800 rpm 1500/1800 rpm
Prime 350-500 kVA 350-500 kVA
Standby 400-550 kVA 400-550 kVA
Prime 320-410 kWe 320-410 kWe
Standby 350-450 kWe 350-450 kWe
Emissions Emits equivalent to EU Stage II Emits equivalent to EU Stage II
Number of Cylinders 6 vertical inline 6 vertical inline
Displacement 787.2 in³ 12.9 l
Aspiration Turbocharged aftercooled Turbocharged aftercooled
Bore 5.1 in 130 mm
Stroke 6.4 in 162 mm
Combustion System Common rail direct injection Common rail direct injection
Compression Ratio 18:1 18:1
Aftertreatment None None
Total Lubricating Oil Capacity 18 gal (US) 68 l
Total Coolant Capacity 16.3 gal (US) 61.7 l
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Cooling System Liquid Liquid
Typical Alternator Efficiency 92% 92%
Switchable Yes Yes
Length 89.1 in 2262 mm
Width 44.5 in 1130 mm
Height 67 in 1703 mm
Dry Weight 3082 lb 1398 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options
Prime Power Unlimited hours usage with an average load factor of 70 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. No overload is permitted. Unlimited hours usage with an average load factor of 70 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. No overload is permitted.
Standby Power Limited to 500 hours annual usage with an average load factor of 70 percent of the published standby power over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted. Limited to 500 hours annual usage with an average load factor of 70 percent of the published standby power over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted.

2606C-E13TAG Standard Equipment

Electro unit or ElectropaK

  • ElectropaK

Radiator fitted

  • Yes

Fuel filter, engine mounted

  • Yes

Water separator

  • Yes

Fuel water sight glass

  • Yes

Fuel priming pump (manual/electric)

  • Electric

WIF sensor

  • Yes

Fuel cooler

  • None

Air filter, engine mounted

  • Yes

Engine ECM, engine mounted

  • Yes

Wiring harness to ECM

  • Yes

Wiring harness (all connectors to single customer interface)

  • Yes

Battery charging alternator

  • Yes

Flywheel housing

  • Yes

Flywheel

  • Yes

Fan

  • Yes

Fan guard

  • Yes

Temperature and oil pressure for automatic stop/alarm configurable

  • Yes
