Total Power Range
| Gross Mechanical Output | 182-239 kWm 182-239 kWm |
| Typical Electrical Output | 200-220 kVA (135-200 kWe) 200-220 kVA (135-200 kWe) |
| Rated Speed | 1500/1800 rpm 1500/1800 rpm |

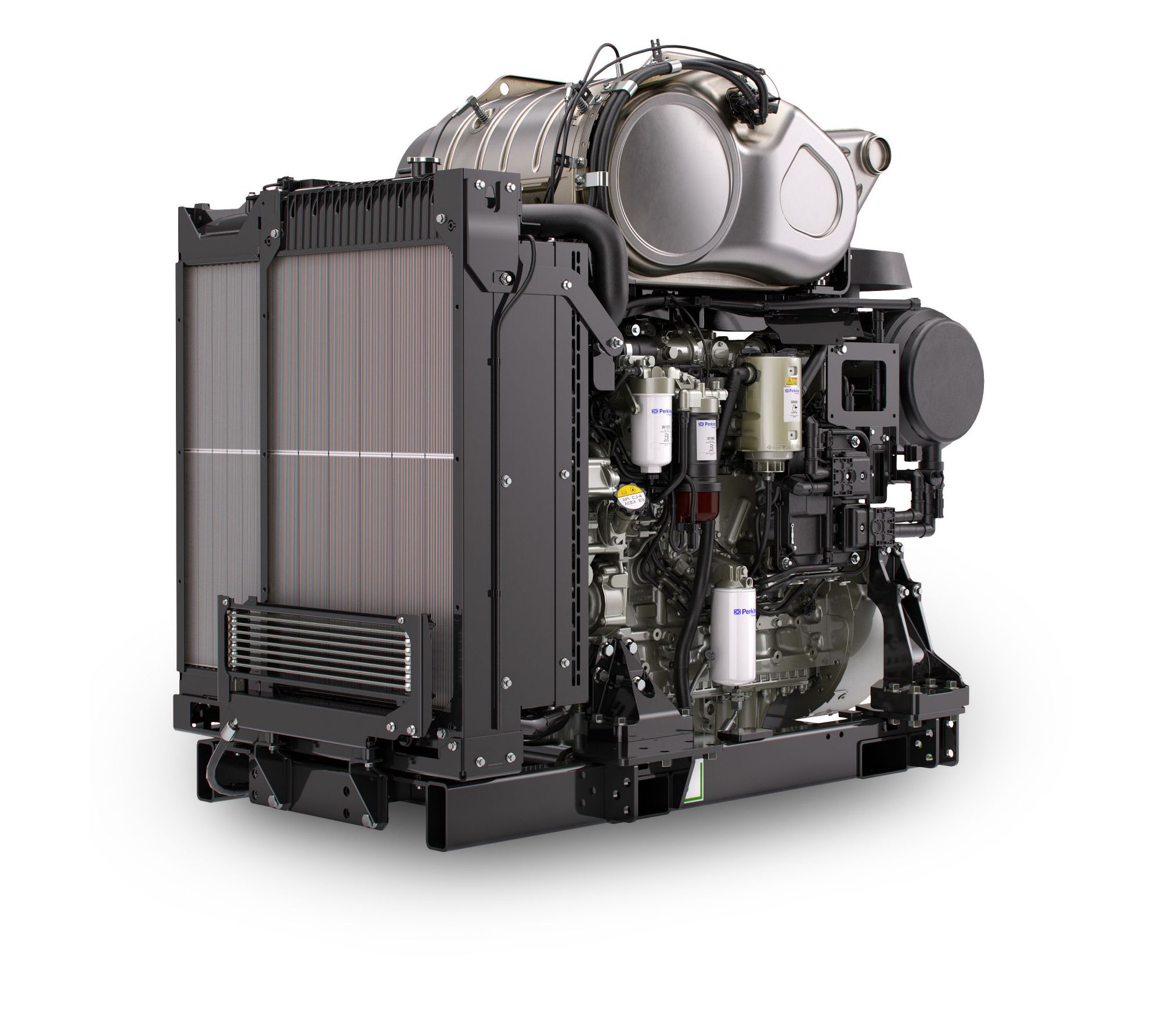

Electric Power Generation 1206J-E70TTAG
Request Consultation Find your DistributorKey Specs
- Gross Mechanical Output
- 182-239 kWm
- 182-239 kWm
- Typical Electrical Output
- 200-220 kVA (135-200 kWe)
- 200-220 kVA (135-200 kWe)
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final
- EU Stage V, U.S. EPA Tier 4 Final
Overview
Perkins 1200 Series electric power engines deliver the power you need, when you need it. From hospitals to hotels, icy wastelands to scorching deserts, construction sites to factories our engines provide the reliability, low operating costs and exceptional performance you need. Engines range from 4.4 to 7 litre, are turbocharged and chargecooled for extra power and load acceptance, while meeting the latest stringent emissions standards.
Features At A Glance
Hydraulic tappets, multi-vee belts, service free aftertreatment and 500 hour oil change intervals keep your maintenance costs as low as possible
Product Specifications for 1206J-E70TTAG
50 Hz Typical Electrical Output
| Prime | 200 kVA 200 kVA |
| Standby | 220 kVA 220 kVA |
60 Hz Typical Electrical Output
| Prime | 135-180 kWe 135-180 kWe |
| Standby | 149-200 kWe 149-200 kWe |
Emission Standards
| Emissions | EU Stage V, U.S. EPA Tier 4 Final EU Stage V, U.S. EPA Tier 4 Final |
General
| Number of Cylinders | 6 vertical inline 6 vertical inline |
| Bore | 4.13 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.7 in³ 7.01 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Series turbocharged and air-to-air charge cooled Series turbocharged and air-to-air charge cooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Typical Alternator Efficiency | 92% 92% |
| Switchable | Yes Yes |
ElectropaK Dimensions
| Length | 73.4 in 1864 mm |
| Width | 36.8 in 934 mm |
| Height | 58.5 in 1487 mm |
| Dry Weight | 2578.5 lb 1169.4 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
Definitions
| Prime Power | Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. |
| Standby Power | Power available at variable load in the event of a main power network failure. No overload is permitted. Power available at variable load in the event of a main power network failure. No overload is permitted. |
1206J-E70TTAG Standard Equipment
Aftertreatment technology
- 3ʺ flex pipe connection kit with rotatable elbow for 60° and 90° RS inlet flexibility
- DOC - Diesel Oxidation Catalyst
- DPF - Diesel Particulate Filter
- Passive regeneration system
- SCR - Selective Catalytic Reduction
Air inlet system
- Standard air cleaners
Cooling system
- 50:50 water glycol mix
- Tropical radiator as standard ensures optimal cooling performances all year round in any state
Control system
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
Flywheels and flywheel housing
- Includes SAE No. 2 and SAE No. 3 flywheel housing
Fuel system
- Electronic high pressure common rail
- Innovative filter design to ensure maximum protection of the engine
Oil system
- Flat bottomed, isolated, aluminum sump
Standard emissions control equipment
- NRS – NOx Reduction System
