Total Power Range
| Gross Mechanical Output | 267-354 kWm 267-354 kWm |
| Typical Electrical Output | 296-397 kVA (237-318 kWe) 296-397 kVA (237-318 kWe) |
| Rated Speed | 1800 rpm 1800 rpm |

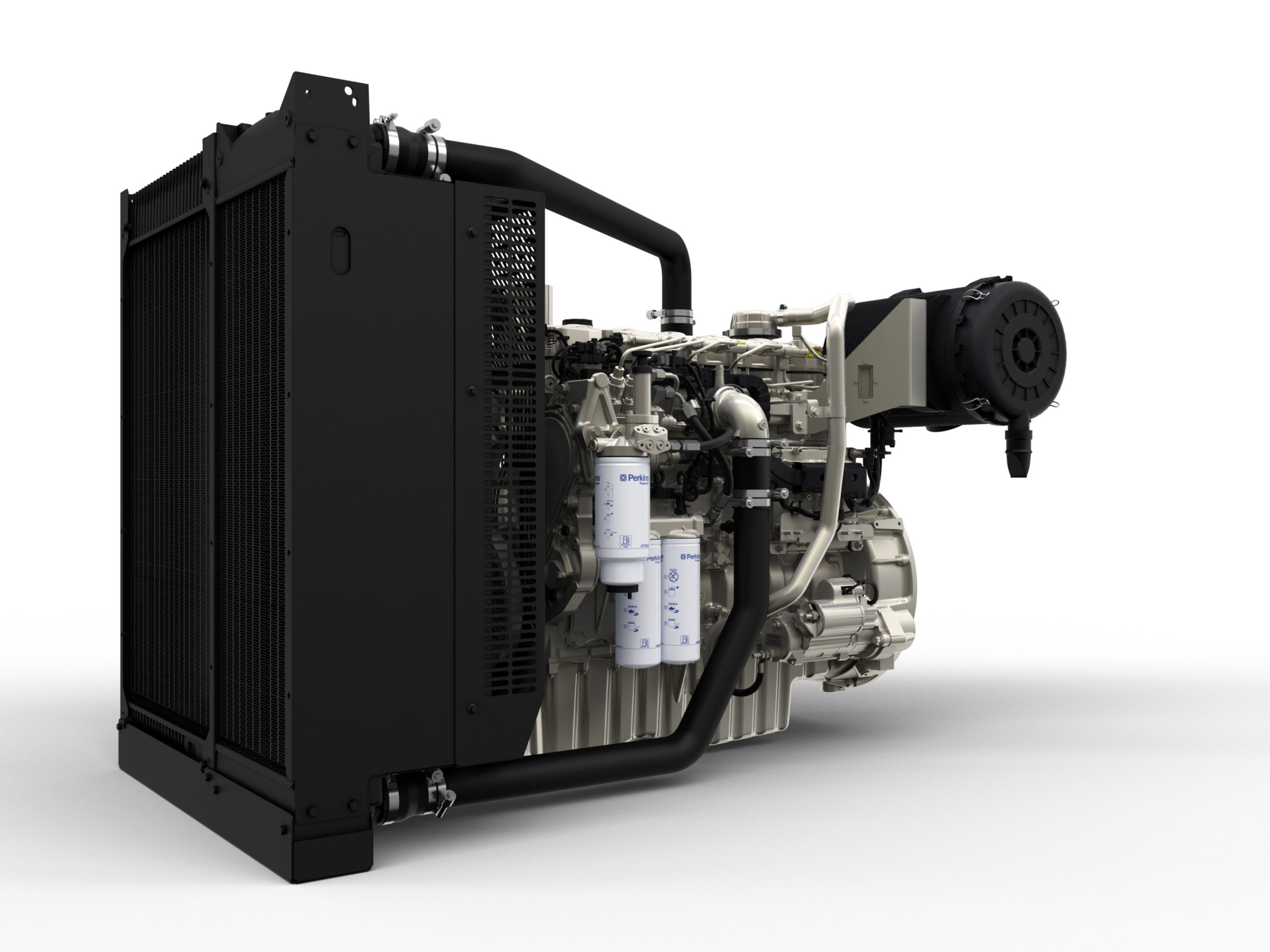

Electric Power Generation 1706D-E93TAG
Request Consultation Find your DistributorKey Specs
- Gross Mechanical Output
- 267-354 kWm
- 267-354 kWm
- Typical Electrical Output
- 296-397 kVA (237-318 kWe)
- 296-397 kVA (237-318 kWe)
- Emissions
- US EPA Tier 3
- US EPA Tier 3
Overview
The Perkins® 1700 Series is engineered to provide class leading performance and maximise competitive advantage for our customers. Developed on a latest generation 9.3 litre core, the 1706D offers greater capability and more flexibility to our customers from a simple plug and play product.
Benefits
Delivers 31% more power compared to previous models
Provides 25% better load acceptance than previous models
30% improved ambient capability in comparison to previous models
Features At A Glance
Product Specifications for 1706D-E93TAG
60 Hz Typical Electrical Output
| Prime | 237-288 kWe 237-288 kWe |
| Standby | 261-318 kWe 261-318 kWe |
Emission Standards
| Emissions | US EPA Tier 3 US EPA Tier 3 |
General
| Number of Cylinders | 6 vertical inline 6 vertical inline |
| Bore | 4.5 in 114 mm |
| Stroke | 5.9 in 149 mm |
| Displacement | 567 in³ 9.3 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
| Aftertreatment | - - |
| Typical Alternator Efficiency | 93% 93% |
| Switchable | No No |
ElectropaK Dimensions
| Length | 81.9 in 2083 mm |
| Width | 42.9 in 1091 mm |
| Height | 51.6 in 1311 mm |
| Dry Weight | 2359 lb 1070 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
Definitions
| Prime Power | Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation. |
| Standby Power | Power available at variable load in the event of a main power network failure. No overload is permitted. Power available at variable load in the event of a main power network failure. No overload is permitted. |
1706D-E93TAG Standard Equipment
Air inlet system
- Standard air cleaners
Cooling system
- Tropical radiator as standard ensures optimal cooling performances all year round in any state
- 50:50 water glycol mix
Control system
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- Full electronic control system. All connectors and wiring looms waterproof and designed to withstand harsh environments
Flywheels and flywheel housing
- SAE1 flywheel housing
Fuel system
- Electronic high pressure common rail
- Fuel filter, fuel transfer pump, fuel priming pump
Oil system
- Aluminium sump
