Total Power Range
| Gross Mechanical Output | 1270-1937 kWm 1270-1937 kWm |
| Typical Electrical Output | 1463-2263 kVA (1170-1811 kWe) 1463-2263 kVA (1170-1811 kWe) |
| Rated Speed | 1500 rpm 1500 rpm |

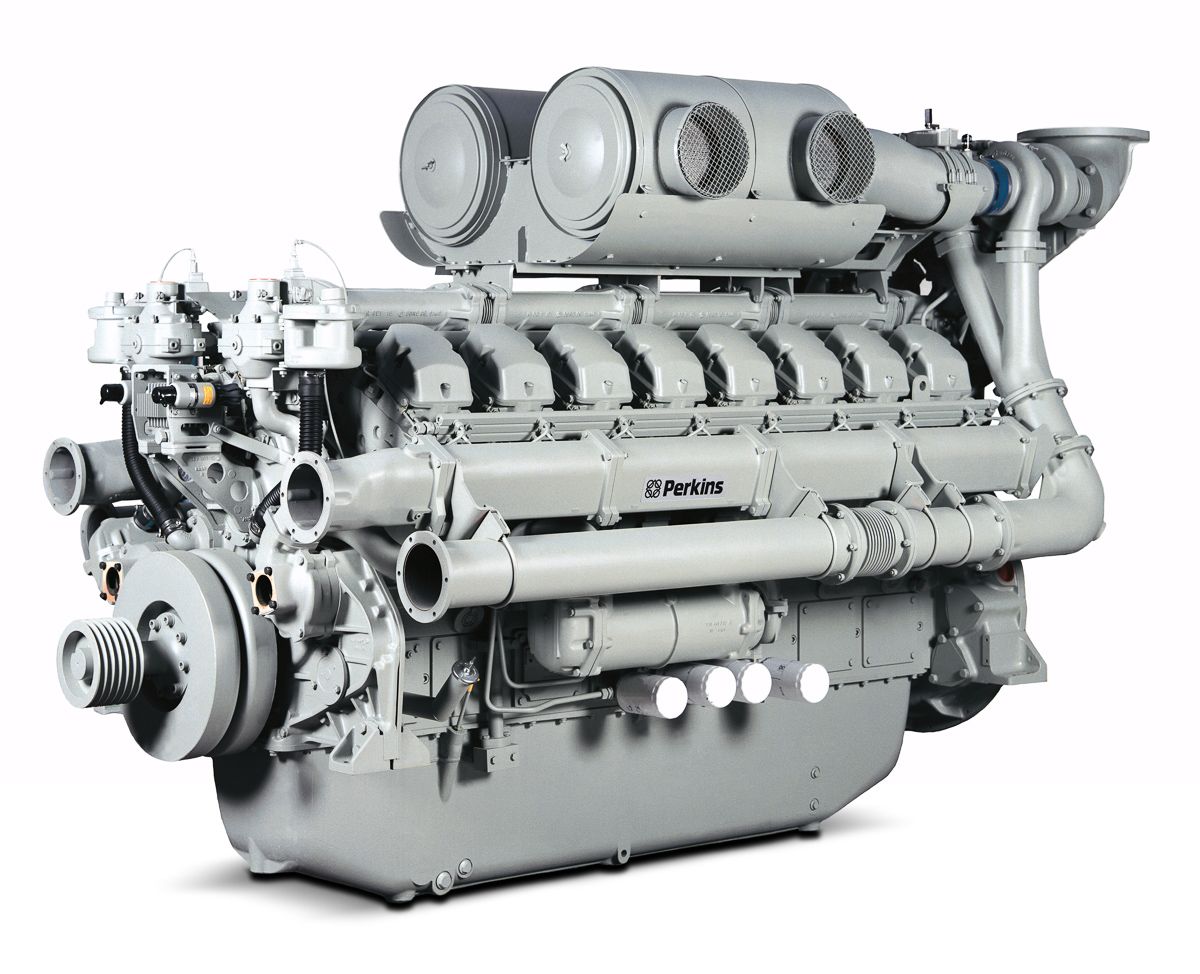

Electric Power Generation 4016TAG
Request Consultation Find your DistributorKey Specs
- Gross Mechanical Output
- 1270-1937 kWm
- 1270-1937 kWm
- Typical Electrical Output
- 1463-2263 kVA (1170-1811 kWe)
- 1463-2263 kVA (1170-1811 kWe)
- Emissions
- Fuel Optimised
- Fuel Optimised
Overview
Our 4016 range gives you the versatility and heavy duty performance you need in today's power generation market. The Perkins 4016 engines feature 16 cylinders and a massive 61 litre displacement in both ElectropaK and Electro Unit variants. The 4016 range offers 1463-2263 kVA generator output. Our 4016 range engines have exceptional power-to-weight ratio and compact design, making them easy to transport and install.
Features At A Glance
Advanced gallery jet cooling system
Optional equipment
Product Specifications for 4016TAG
Emission Standards
| Emissions | Fuel Optimised Fuel Optimised |
50 Hz Typical Electrical Output
| Prime | 1844-2058 kVA 1844-2058 kVA |
| Standby | 2028-2263 kVA 2028-2263 kVA |
| Baseload | 1463-1634 kVA 1463-1634 kVA |
General
| Number of Cylinders | 16 Vee 16 Vee |
| Bore | 6.3 in 160 mm |
| Stroke | 7.5 in 190 mm |
| Displacement | 16.2 in³ 61.1 l |
| Compression Ratio | 13.6:1 13.6:1 |
| Aspiration | Turbocharged and air-to-air charge cooled Turbocharged and air-to-air charge cooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
| Aftertreatment | - - |
| Typical Alternator Efficiency | 96% 96% |
| Switchable | No No |
Engine Dimensions*
| Length | 130 in 3302 mm |
| Width | 67.8 in 1723 mm |
| Height | 83.8 in 2128 mm |
| Dry Weight | 12282 lb 5570 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
Definitions
| Prime Power | Variable load. Unlimited hours usage with an average load factor of 80% of the published prime power over each 24 hour period. A 10% overload is available for 1 hour in every 12 hour operation. Variable load. Unlimited hours usage with an average load factor of 80% of the published prime power over each 24 hour period. A 10% overload is available for 1 hour in every 12 hour operation. |
| Standby Power | Limited to 500 hours annual usage with an average load factor of 80% of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on standby power. Limited to 500 hours annual usage with an average load factor of 80% of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on standby power. |
| Baseload | Unlimited hours usage with an average load factor of 100% of the published baseload power. No overload is permitted on baseload power. Unlimited hours usage with an average load factor of 100% of the published baseload power. No overload is permitted on baseload power. |
4016TAG Standard Equipment
Air inlet system
- Mounted air filter and turbochargers
Cooling system
- Crankshaft pulley for fan drive
- Twin gear driven circulating pumps
- Two twin thermostats
Electrical equipment
- 24 volt combined high coolant temperature/low oil pressure switch
- 24 volt Electronic Shut Off Solenoid (ESOS) energised to run
- 24 volt starter motor and 24 volt 40 amp alternator with integral regulator and DC output
- Overspeed switch and magnetic pickup
- Turbine inlet temperature shutdown switch
Flywheels and flywheel housing
- SAE 00 flywheel housing
- SAE J620 size 18 flywheel
Fuel system
- Full flow spin-on fuel oil filters
- Unit fuel injectors with lift pump and hand stop control
Governing
- Electronic governor to ISO 3046 Part 4 class A1
Oil system
- Engine jacket water/lubricating oil temperature stabiliser
- Full flow spin-on oil filters
- Wet sump with filler and dipstick
