Total Power Range
| Gross Mechanical Output | 321-572 kW 321-572 kW |
| Typical Electrical Output | 350-625 kVA (280-500 kWe) 350-625 kVA (280-500 kWe) |
| Rated Speed | 1500/1800 rpm 1500/1800 rpm |

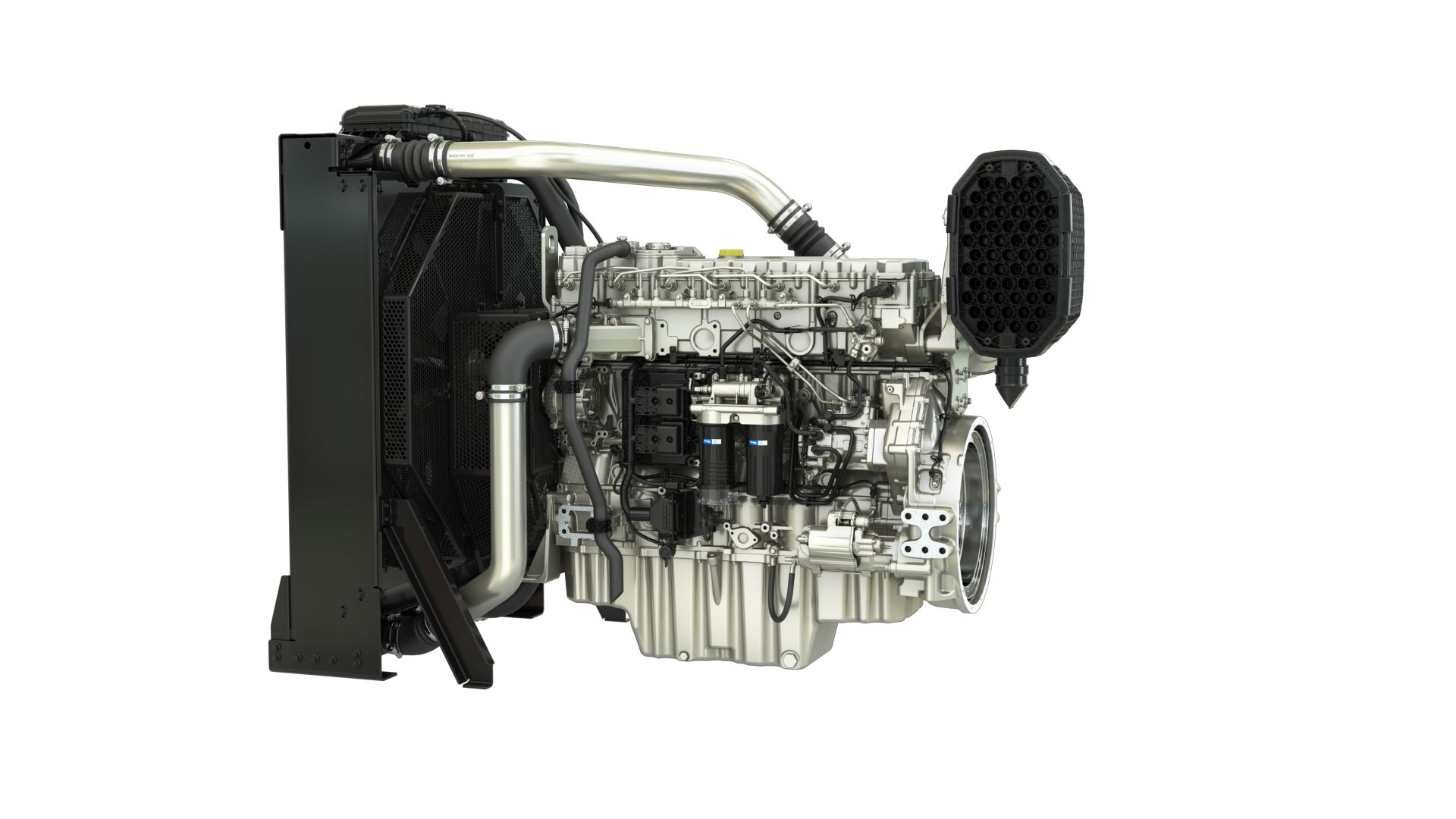

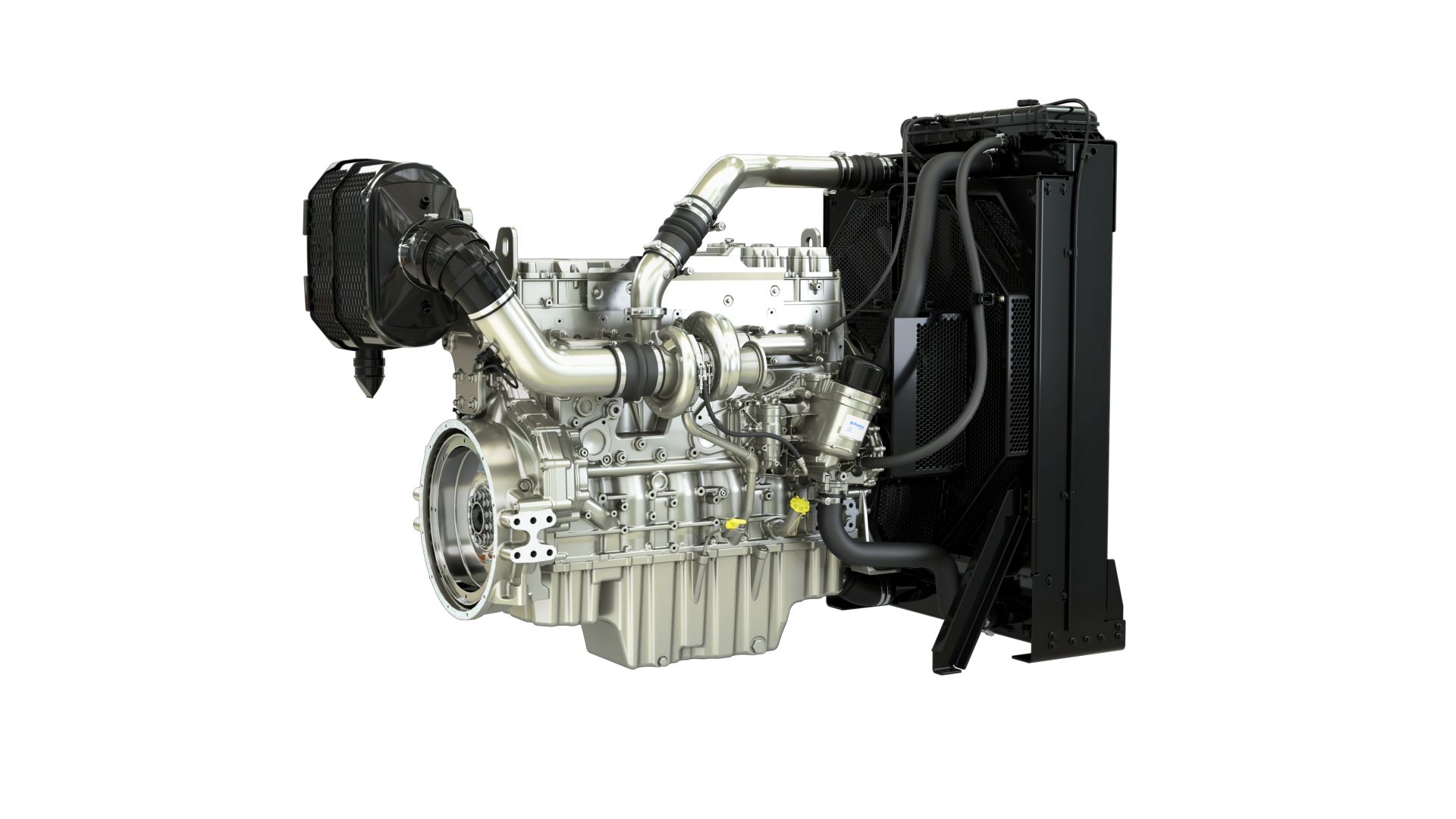

Electric Power Generation 2606A-E13TAG
Request Consultation Find your DistributorKey Specs
- Gross Mechanical Output
- 321-572 kW
- 321-572 kW
- Typical Electrical Output
- 350-625 kVA (280-500 kWe)
- 350-625 kVA (280-500 kWe)
- Emissions
- Fuel optimised
- Fuel optimised
Overview
The Perkins® 2606A-E13TAG is a fuel optimised model, based on the same foundation as its proven heavy-duty industrial counterpart, and has the capability of switching between 50 Hz and 60 Hz frequencies.
Furthermore, the 2606A-E13TAG models can be switched over to respective 2606C-E13TAG models which achieve EU Stage II equivalent emissions, intended for potential local site regulations.
Features At A Glance
Product Specifications for 2606A-E13TAG
50 Hz Typical Electrical Output
| Prime | 350-500 kVA 350-500 kVA |
| Standby | 400-550 kVA 400-550 kVA |
60 Hz Typical Electrical Output
| Prime | 320-455 kWe 320-455 kWe |
| Standby | 350-500 kWe 350-500 kWe |
Emission Standards
| Emissions | Fuel optimised Fuel optimised |
General
| Number of Cylinders | 6 vertical inline 6 vertical inline |
| Bore | 5.1 in 130 mm |
| Stroke | 6.4 in 162 mm |
| Displacement | 787.2 in³ 12.9 l |
| Compression Ratio | 18:1 18:1 |
| Aspiration | Turbocharged and air-to-air charge cooled Turbocharged and air-to-air charge cooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
ElectropaK Dimensions
| Length | 89.1 in 2262 mm |
| Width | 43.3 in 1099 mm |
| Height | 66.9 in 1700 mm |
| Dry Weight | 3082 lb 1398 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
Definitions
| Prime Power | Unlimited hours usage with an average load factor of 70 to 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. Unlimited hours usage with an average load factor of 70 to 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. |
| Standby Power | Limited to 500 hours annual usage with an average load factor of 70 to 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on standby power. Limited to 500 hours annual usage with an average load factor of 70 to 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted on standby power. |
2606A-E13TAG Standard Equipment
Air inlet system
- Mounted air filter
Cooling system
- Mounted belt-driven pusher fan
- Radiator incorporating air-to-air charge cooler, (supplied loose)
- System designed for ambients up to 60°C (140°F)
Electrical equipment
- 24 volt starter motor and 24 volt 50 amp alternator with DC output
- Engine mounted ECM with pre-installed harnessing
Flywheels and flywheel housing
- SAE 14 flywheel
- SAE 1 flywheel housing
Fuel system
- No fuel cooler required
- Governing to ISO 8528-5 class G2 with isochronous capability, with G3 capability
- Common rail fuel injection system with full authority electronic control
- Electric fuel priming pump
- Water-in-fuel sensor
- Water and fuel separation clear bowl
- Bottom-service cartridge fuel filters
Mountings
- Front engine mounting bracket
Oil system
- Top-service cartridge oil filters with auto-drain servicing feature
- Engine shipped dry (no oil)
- Oil filler and dipstick available
Optional equipment
- 110 volt/240 volt immersion heater
- Additional speed sensor
- Temperature and pressure switch/sender
- Optional engine colour choice
- Droop isochronous switch for multiple generators in parallel
- Engine frequency/speed switchability switch (between 50 Hz and 60 Hz)
