Total Power Range
| Gross Mechanical Output | 921-1638 kW 921-1638 kW |
| Typical Electrical Output | 1020-1875 kVA (816-1500 kWe) 1020-1875 kVA (816-1500 kWe) |
| Rated Speed | 1500 rpm 1500 rpm |

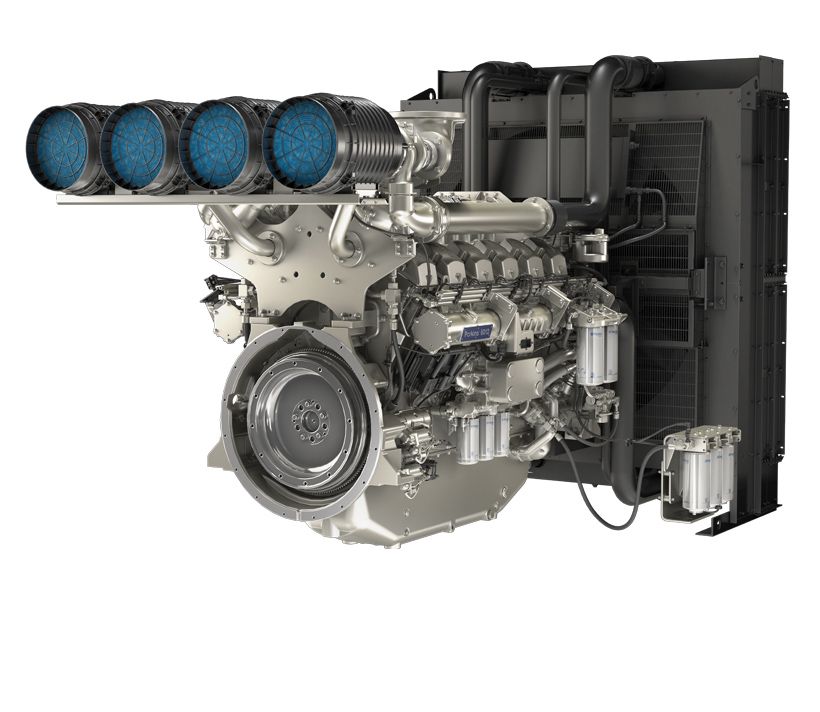

Electric Power Generation 5012A-E46TAG
Request Consultation Find your DistributorKey Specs
- Gross Mechanical Output
- 921-1638 kW
- 921-1638 kW
- Typical Electrical Output
- 1020-1875 kVA (816-1500 kWe)
- 1020-1875 kVA (816-1500 kWe)
- Emissions
- Fuel Optimised
- Fuel Optimised
Overview
The Perkins® 5012A-E46TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.
Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer low daily operating costs.
Features At A Glance
Maximised productivity
The engine build and performance have been designed from the ground up with ultimate productivity and dependability in mind, so customers can be confident that power will be available when required.
They have been tested around the world, in the harshest environments, to deliver performance, no matter the conditions.
Minimised daily operating costs
Ease of integration and service accessibility
A single point customer electronics connection supports ease of integration and service accessibility is provided from a single side with 500 hours or two year oil and fuel service interval whichever comes first.
Advanced technology
Product Specifications for 5012A-E46TAG
Emission Standards
| Emissions | Fuel Optimised Fuel Optimised |
50 Hz Typical Electrical Output
| Prime | 1275-1710 kVA (1020-1368 kWe) 1275-1710 kVA (1020-1368 kWe) |
| Standby | 1400-1875 KVA (1120-1500 kWe) 1400-1875 KVA (1120-1500 kWe) |
| Baseload | 1020-1368 kVA (816-1094 kWe) 1020-1368 kVA (816-1094 kWe) |
General
| Number of Cylinders | 12 Vee 12 Vee |
| Bore | 6.3 in 160 mm |
| Stroke | 7.5 in 190 mm |
| Displacement | 2797.3 in³ 45.84 l |
| Compression Ratio | 13.8:1 13.8:1 |
| Aspiration | Turbocharged and air-to-air chargecooled Turbocharged and air-to-air chargecooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Watercooled Watercooled |
| Aftertreatment | N/A N/A |
| Typical Alternator Efficiency | 95% 95% |
| Switchable | No No |
ElectropaK Dimensions
| Length | 154.1 in 3913 mm |
| Width | 86.6 in 2200 mm |
| Height | 102.9 in 2614 mm |
| Dry Weight | 12919 lb 5860 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
Definitions
| Prime Power | Unlimited hours usage with an average load factor of 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. Unlimited hours usage with an average load factor of 80 percent of the published prime power over each 24 hour period. A 10 percent overload is available for one hour in every 12 hours operation. |
| Standby Power | Limited to 500 hours usage with an average load factor of 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted. Limited to 500 hours usage with an average load factor of 80 percent of the published standby power rating over each 24 hour period. Up to 300 hours of annual usage may be run continuously. No overload is permitted. |
| Baseload | Unlimited hours usage with an average load factor of 100 percent of the published continuous operating power. No overload is permitted on continuous operating power. Unlimited hours usage with an average load factor of 100 percent of the published continuous operating power. No overload is permitted on continuous operating power. |
5012A-E46TAG Standard Equipment
Electro unit or ElectropaK
- Both
Radiator fitted
- Loose
Fuel filter
- Engine mounted
Water separator
- N/A
Fuel priming pump (manual/electric)
- Electric
Fuel cooler
- Not required for most installations
Air filter
- Engine mounted
Engine ECM
- Engine mounted
Wiring harness
- To ECM
- All connectors to single customer interface
Temperature and oil pressure for automatic stop/alarm
- Configurable
