Overview

Our marine engines for auxiliary applications give you low cost of ownership, excellent fuel economy and competitive prices both for engine and parts. Auxiliary engines generate a vessel's on-board electricity, so they need to be quick to start and feature low noise and low emissions. For heavy duty requirements, such as powering a large fishing vessel's electrically driven net haul system, you really need the extra power that a dedicated auxiliary engine will give to you – rather than generating electricity from the propulsion engine.

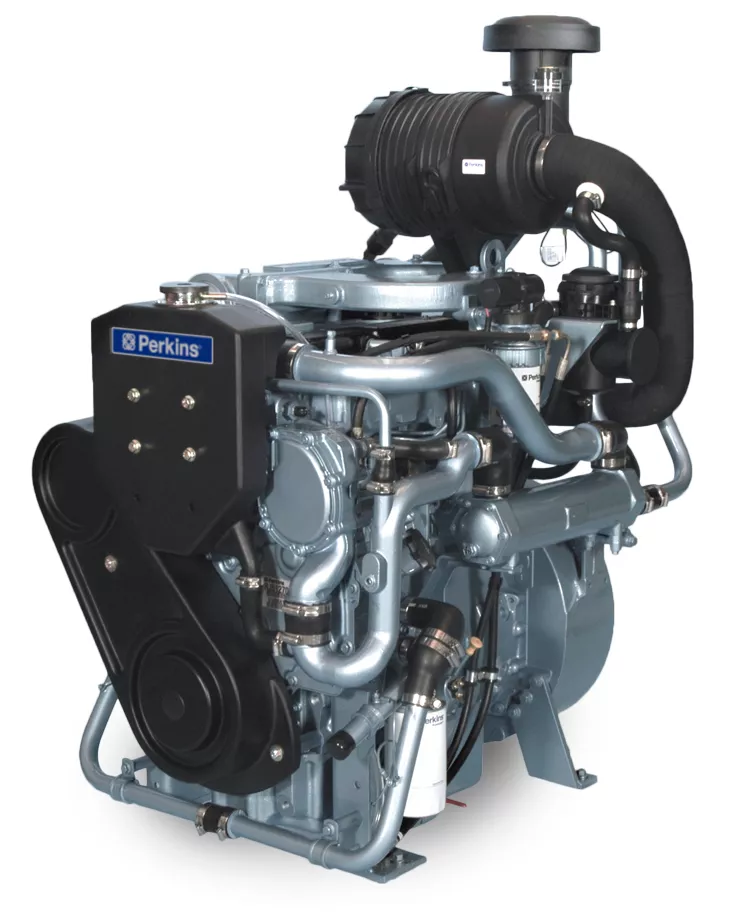

4.4TWGM MARINE AUXILIARY ENGINE

Vertical inline 4 cylinder

4.4 litre

56.4-70 kW (@110%)

Based on 1104 range

Power Rating

Units:
Minimum Power 100.6 HP 75.0 kW Less
Maximum Power 110.9 HP 82.7 kW Less
Maximum Torque 356.2 lb-ft @ 1800 rpm 483.0 Nm @ 1800 rpm Less
Rated Speed 1500-1800 rpm 1500-1800 rpm Less

Emission Standards

Emissions Meets CCNR Stage 2 (1500 rpm rating) Meets CCNR Stage 2 (1500 rpm rating) Less

General

Bore 4.1 in 105.0 mm Less
Stroke 5.0 in 127.0 mm Less
Displacement 286.5 in³ 4.4 l Less
Aspiration Turbocharged air to water cooled Turbocharged air to water cooled Less
Rotation from Flywheel End Anti-clockwise Anti-clockwise Less
Combustion System Direct injection Direct injection Less
Compression Ratio 19.3:1 19.3:1 Less
Cooling System Liquid Liquid Less
Cycle 4 stroke 4 stroke Less
Number of Cylinders 4 inline 4 inline Less
Total Coolant Capacity 4.0 gal (US) 15.0 l Less
Total Lubricating Capacity 4.0 gal (US) 15.0 l Less

Disclaimer

Note 1 Final dimensions dependent on selected options Final dimensions dependent on selected options Less

Engine Dimensions*

Dry Weight 1034.0 lb 469.0 kg Less
Height 50.1 in 1272.0 mm Less
Length - Flywheel Housing 33.2 in 844.0 mm Less
Wet Weight 1150.8 lb 522.0 kg Less
Width 29.7 in 754.0 mm Less
