The Perkins® 5000 Series

The 5000 Series engines have been designed from the ground up
to deliver power when you need it

Request Consultation

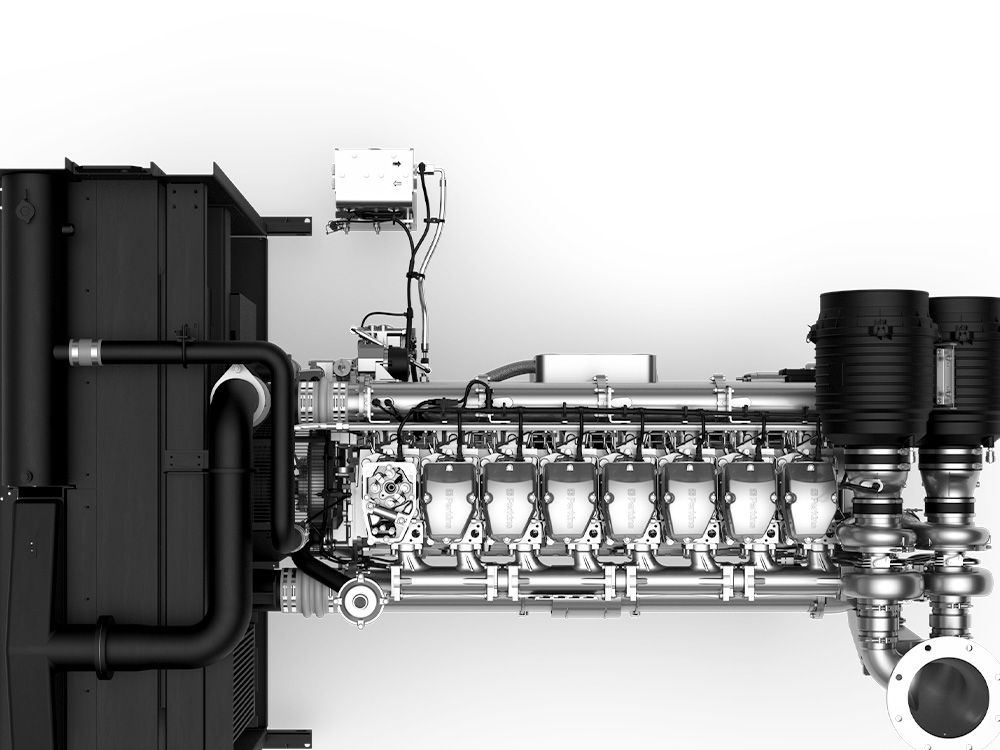

The Perkins® 5000 Series – the next generation of electric power

The Perkins® 5000 Series is a fully electronic range of inline six and eight cylinder and V12 and V16 cylinder engines, engineered specifically for the power generation market to supply critical applications such as data centres and hospitals with dependable prime or standby power, where downtime isn’t an option.

Learn more about the 5008 engine and it's seamless integration into Allam Marine Systems

Perkins Engines and Jubaili Bros collaborate to bring critical power solutions to hospitals, data centres, telecommunications, construction sites and other remote off-grid applications. Powered by the Perkins 5008, Jubaili Bros, a self service OEM are able to carry out all preventative maintenance with product support and Perkins genuine parts.

Since 1992, Allam Marine and Perkins Engines have been delivering reliable and economical engine solutions worldwide. This video features the new 5008 engine and its seamless integration into Allam Marine systems. Learn how Perkins works with customers to provide end-to-end solutions, supporting every step of the way.

The Perkins® 5000 Series – the next generation of electric power. Ranging from 750 to 2500 kVA of power potential, the full authority electronic fuel injection 5000 Series engines are built to world-class standards, for high efficiency, low fuel consumption and global emissions capability.

The new 5000 Series from Perkins is a range of engines expertly designed and engineered to deliver reliable power.

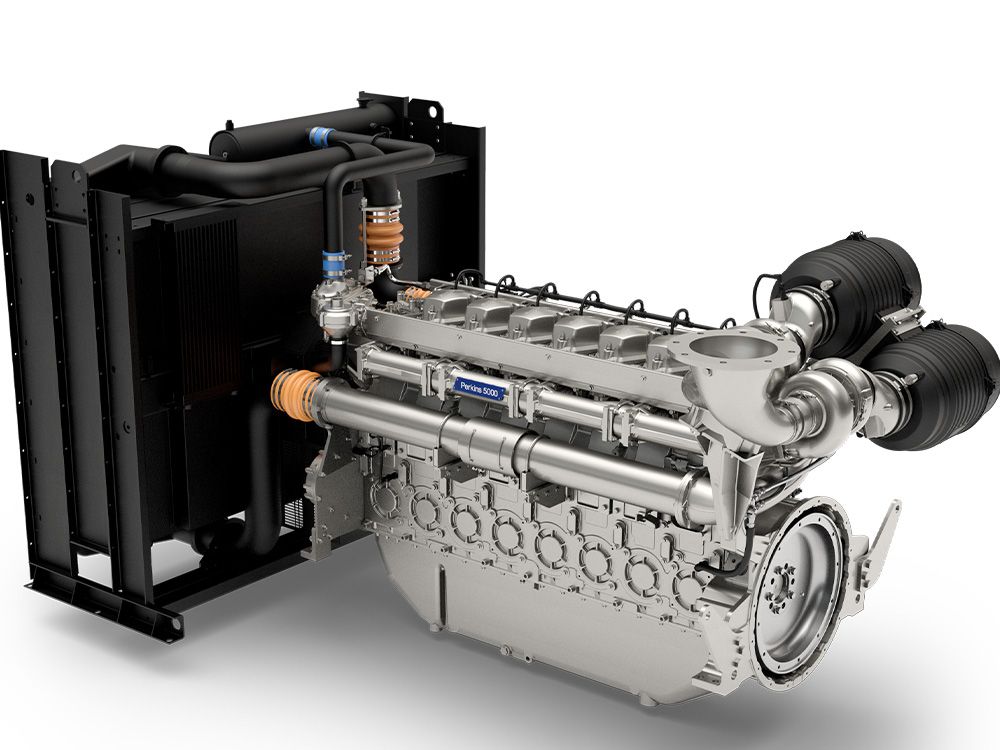

Explore the 5006, 5008, 5012, and 5016 engines

The 5000 Series engines are the culmination of many years of research, development and rigorous testing.

Ranging from 750 to 2500 kVA of power potential, the full authority electronic fuel injection 5000 Series engines are built to world-class standards, for high efficiency, low fuel consumption and global emissions capability.

Gross Mechanical Output

533-788 kW

533-788 kW

Typical Electrical Output

600-900 kVA (480-720 kWe)

600-900 kVA (480-720 kWe)

Emissions

Fuel Optimised

Fuel Optimised

5006A-E23TAG

The Perkins® 5006A-E23TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer low daily operating costs.
Learn More

View

Gross Mechanical Output

533-788 kW

533-788 kW

Typical Electrical Output

600-900 kVA (480-720 kWe)

600-900 kVA (480-720 kWe)

Emissions

Equivalent to U.S. EPA Tier 2

Equivalent to U.S. EPA Tier 2

5006AC-E23TAG

The Perkins® 5006AC-E23TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer lower emissions to meet regulatory standards.
Learn More

View

Gross Mechanical Output

650-1094 kW

650-1094 kW

Typical Electrical Output

728-1250 kVA (582-1000 kWe)

728-1250 kVA (582-1000 kWe)

Emissions

Fuel Optimised

Fuel Optimised

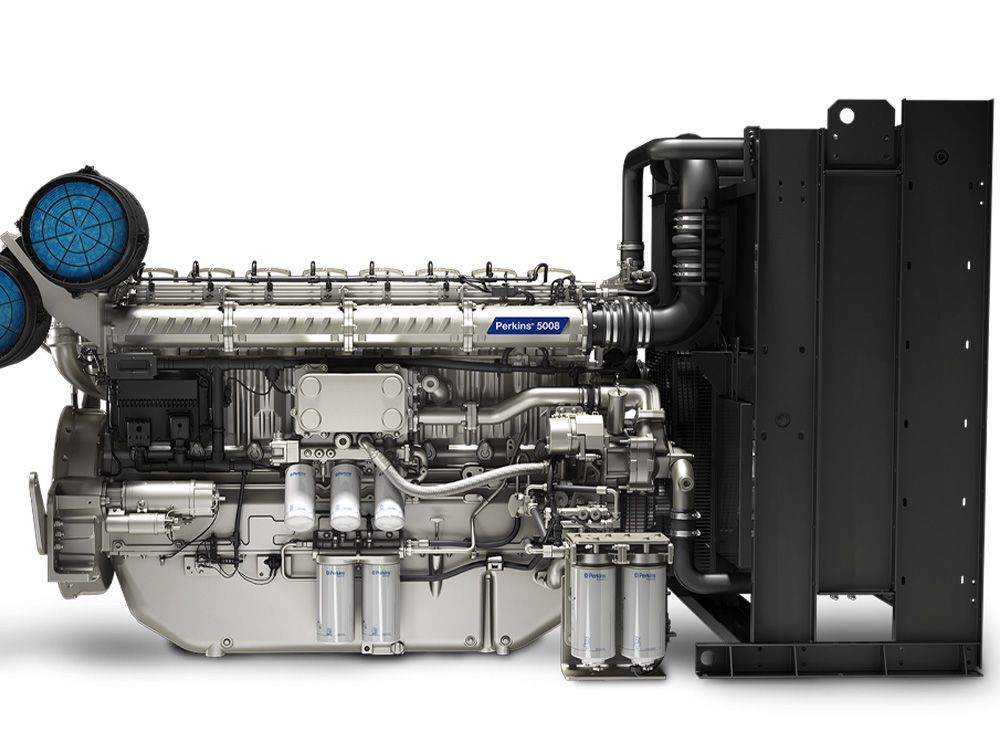

5008A-E30TAG

The Perkins® 5008A-E30TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical applications market and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer low daily operating costs.
Learn More

View

Gross Mechanical Output

650-1094 kW

650-1094 kW

Typical Electrical Output

729-1250 kVA (582-1000 kWe)

729-1250 kVA (582-1000 kWe)

Emissions

Equivalent to U.S. EPA Tier 2

Equivalent to U.S. EPA Tier 2

5008AC-E30TAG

The Perkins® 5008AC-E30TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical applications market and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer lower emissions to meet regulatory standards.

Emissions equivalent to U.S. EPA Tier 2
Learn More

View

Gross Mechanical Output

907-1107 kWm

907-1107 kWm

Typical Electrical Output

1012-1250 kVA (810-1000 kWe)

1012-1250 kVA (810-1000 kWe)

Emissions

US EPA Stationary Emergency-Use-Only (Tier 2)

US EPA Stationary Emergency-Use-Only (Tier 2)

5008C-E30TAG

The Perkins® 5008C-E30TAG has been designed to offer reliable power for the emergency standby and critical applications market, including data centres and hospitals among others.

Engineered and built specifically for the power generation market, the Perkins 5000 Series is a power-packed engine range built to be dependable, versatile and offer lower emissions to meet regulatory standards.
Learn More

View

Gross Mechanical Output

921-1638 kW

921-1638 kW

Typical Electrical Output

1020-1875 kVA (816-1500 kWe)

1020-1875 kVA (816-1500 kWe)

Emissions

Fuel Optimised

Fuel Optimised

5012A-E46TAG

The Perkins® 5012A-E46TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer low daily operating costs.
Learn More

View

Gross Mechanical Output

921-1638 kW

921-1638 kW

Typical Electrical Output

1020-1875 kVA (816-1500 kWe)

1020-1875 kVA (816-1500 kWe)

Emissions

Equivalent to U.S. EPA Tier 2

Equivalent to U.S. EPA Tier 2

5012AC-E46TAG

The Perkins® 5012AC-E46TAG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.

Engineered and built specifically for the power generation market, the Perkins® 5000 Series is a power-packed engine range built to be dependable, versatile and offer lower emissions to meet regulatory standards.
Learn More

View

Gross Mechanical Output

1249-2205 kW

1249-2205 kW

Typical Electrical Output

1400-2500 kVA (1120-2000 kWe)

1400-2500 kVA (1120-2000 kWe)

Emissions

Fuel Optimised

Fuel Optimised

5016A-E61TRG

The Perkins® 5016A-E61TRG has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.

Engineered and built specifically for the power generation industry, the Perkins® 5000 Series is a power-packed engine range designed to be dependable while offering versatility and low daily operating costs.
Learn More

View

Gross Mechanical Output

1249-2205 kW

1249-2205 kW

Typical Electrical Output

1400-2500 kVA (1120-2000 kWe)

1400-2500 kVA (1120-2000 kWe)

Emissions

Noncertified configuration that is equivalent to EU Stage II, China Nonroad Stage III and U.S. EPA Tier 2

Noncertified configuration that is equivalent to EU Stage II, China Nonroad Stage III and U.S. EPA Tier 2

5016AC-E61TRG

The Perkins® 5016AC-E61TRG is a noncertified configuration equivalent to EU Stage II 130≤ P ≤ 560 kW, China Nonroad Stage III >560 kW and U.S. EPA Tier 2. It has been designed to offer reliable power for all electric power applications, including standby, prime, critical and data centres.

Engineered and built specifically for the power generation industry, the Perkins® 5000 Series is a power-packed engine range designed to be dependable while offering versatility and lower emissions.
Learn More

View

Features at a glance

Fully authority electronic, electric power range

Outstanding load acceptance

Optimised turbochargers and custom software provides fast delivery of the full power output in under 13 seconds from start up, ensuring uninterrupted electricity supply for prime and standby applications.

Meets ISO 8528-5 G2 and G3 standards and accepts 100% block load to NFPA requirements.

Low total cost of ownership

Designed to decrease liquid consumption and extend service intervals with redesigned parts including new piston rings liner assembly, electronic fuel system and fuel filters.

The 5000 Series engine can operate for up to 750 hours or two years between oil services delivering low operating costs.

Reliability and durability

Drawing upon 90 years of engineering expertise, the refined core engine architecture and improved sealing technology delivers dependable power for prime and critical applications.

Whether it's for constant power supply to an always on operation, or for backup generators supplying energy to critical applications you can rely on the 5000 Series.

Low carbon fuel compatible

The 5000 Series engines meet EPA Tier 2 emission standards and can run with biodiesel up to B20, based on a 20 percent dilution of biodiesel with standard diesel or on 100 percent hydrotreated vegetable oil (HVO) to EN15940 (as detailed in the Perkins 5000 Series Operation and Maintenance Manual).

Engineered for power

Maximum reliability for maximum uptime

The 5000 Series delivers outstanding load acceptance, meeting Tier 1-5 Uptime Institute requirements for data centres.

Learn more

High power density in a smaller footprint

For applications where real estate is at a premium, the high-power density of the 5000 Series provides a compact design that packs power into a smaller, compact footprint.

Learn more

Consistent power in extreme conditions

Rigorously tested for performance and durability with more than 10,000 running hours already under its belt. Tested and proven to deliver reliable power whenever its required even in the harshest environments.

Learn more

Perkins^® Platinum Protection

Perkins® Platinum Protection is an extended service coverage warranty that provides protection against unforeseen costs and maximises lifetime performance.

Learn more

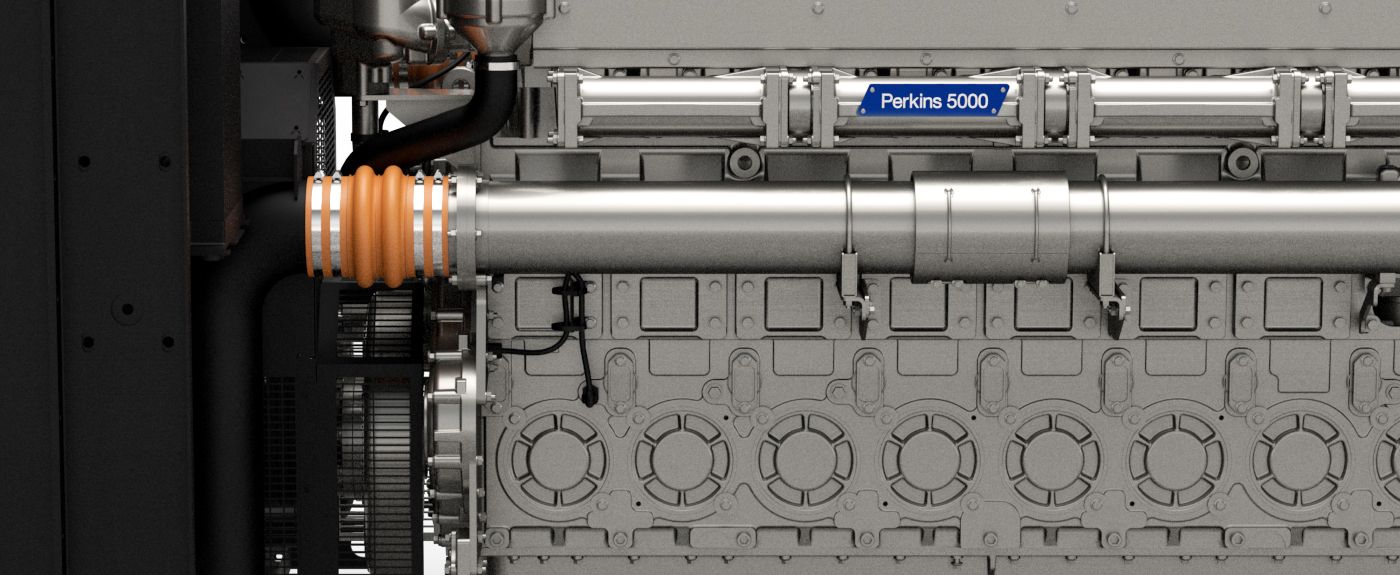

Built for performance

In direct response to industry feedback, the all new 5000 Series has been designed to outperform under any conditions. We’ve drawn upon 90 years of engineering expertise to develop an engine series that meets even the most demanding of emergency power needs. Proven in the harshest of environments, the 5000 Series delivers outstanding performance.

Perkins^® Hypercare

Perkins® Hypercare provides proactive engine services and support that evolves over the lifetime of your engine.

Learn more
