Perkins are pleased to introduce its first electronic engine to the Perkins® 4000 Series family. The 4008 electronic engine is designed specifically to produce lower emissions and provide competitive performance at the same time. This Tier 3 emissions capable engine meets the electric power industry’s growing demand for greener power along with superior performance and reliability.

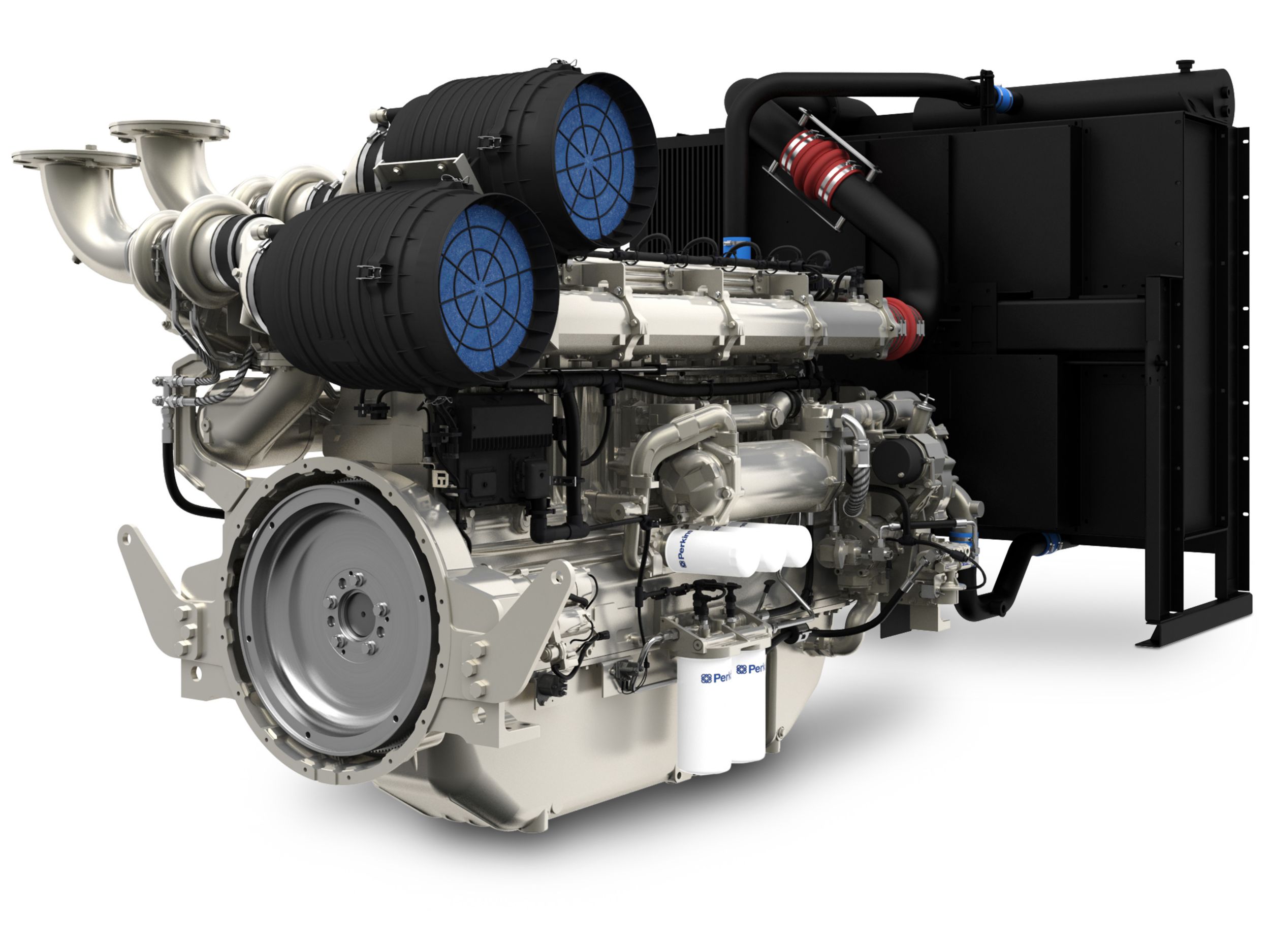

The 4008D-E30TAG is a turbocharged and air-to-air charge cooled, 8 cylinder diesel engine with full electronic control enabling lower emissions, easy diagnostic capability. This engine also offers world leading load acceptance and ambient de-rate capability. Along with exceptional power to weight ratio, this engine also benefits from low cost of ownership and long service intervals; all characteristics essential to the power generation market.
Features At A Glance
Dependable power
• Individual 4 valve cylinder heads giving optimised gas flows
• Unit fuel injectors ensure ultra fine fuel atomisation and hence controlled rapid combustion
• Commonality of components with other engines in the 4000 Series family for reduced stocking levels
• Designed to meet India CPCB ll emissions standards
Low operating costs
• Oil change service intervals are set at 300 hours as standard
• Designed to provide low cost of ownership, simple maintenance and reduced downtime
• Class leading warranty.
Prime power - 12 months unlimited hours. For engines that operate less than 6,000 hours the warranty is available for two years or until the application reaches 6,000 hours (whichever is sooner).
Standby power - three years or 1,500 hours (whichever is sooner).
• Perkins Platinum Protection - comprehensive cover from as little as 5 percent* of the cost of your engine. Talk to your local distributor or visit www.perkins.com/platinum protection for more details
World class product support
• Our experienced global network of distributors and dealers, fully trained engine experts deliver total service support around the clock, 365 days a year. They have a comprehensive suite of web based tools at their disposal, covering technical information, parts identification and ordering systems, all dedicated to maximising the productivity of your engine • Perkins actively pursues product support excellence by insisting our distribution network invest in their territory to provide customers with a consistent quality of support across the globe • Throughout the entire life of a Perkins engine, we provide access to genuine parts giving 100% reassurance that you receive the very best in terms of quality for lowest possible cost, wherever your Perkins powered machine is operating in the world. To find your local distributor: www.perkins.com/distributor
810-1010 kVA (648-808 kWe)810-1010 kVA (648-808 kWe)
Rated Speed
1500 rpm1500 rpm
Emission Standards
Emissions
India CPCB llIndia CPCB ll
General
Number of Cylinders
8 inline8 inline
Bore
5.71 in145 mm
Stroke
7.2 in183 mm
Displacement
1865 in³30.5 l
Compression Ratio
12.8:112.8:1
Aspiration
Turbocharged and air-to-air charge cooledTurbocharged and air-to-air charge cooled
Combustion System
Direct injectionDirect injection
Rotation from Flywheel End
Anti-clockwiseAnti-clockwise
Cooling System
LiquidLiquid
Engine Dimensions*
Length
137 in3468 mm
Width
86 in2194 mm
Height
76 in1920 mm
Dry Weight
9297 lb4217 kg
ElectropaK Dimensions
Length
100 in2538 mm
Width
67 in1691 mm
Height
84 in2126 mm
Dry Weight
5205 lb2361 kg
Disclaimer
Note 1
*Final dimensions dependent on selected options*Final dimensions dependent on selected options
Definitions
Prime Power
Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation.Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation.
Standby Power
Power available at variable load in the event of a main power network failure. No overload is permitted.Power available at variable load in the event of a main power network failure. No overload is permitted.
Baseload
Unlimited hours usage with an average load factor of 100% of the published baseload power. No overload is permitted on baseload power.Unlimited hours usage with an average load factor of 100% of the published baseload power. No overload is permitted on baseload power.
810-1010 kVA (648-808 kWe)810-1010 kVA (648-808 kWe)
Rated Speed
1500 rpm1500 rpm
Emission Standards
Emissions
India CPCB llIndia CPCB ll
General
Number of Cylinders
8 inline8 inline
Bore
5.71 in145 mm
Stroke
7.2 in183 mm
Displacement
1865 in³30.5 l
Compression Ratio
12.8:112.8:1
Aspiration
Turbocharged and air-to-air charge cooledTurbocharged and air-to-air charge cooled
Combustion System
Direct injectionDirect injection
Rotation from Flywheel End
Anti-clockwiseAnti-clockwise
Cooling System
LiquidLiquid
Engine Dimensions*
Length
137 in3468 mm
Width
86 in2194 mm
Height
76 in1920 mm
Dry Weight
9297 lb4217 kg
ElectropaK Dimensions
Length
100 in2538 mm
Width
67 in1691 mm
Height
84 in2126 mm
Dry Weight
5205 lb2361 kg
Disclaimer
Note 1
*Final dimensions dependent on selected options*Final dimensions dependent on selected options
Definitions
Prime Power
Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation.Power available at variable load in lieu of a main power network. Overload of 10% is permitted for one hour in every 12 hours of operation.
Standby Power
Power available at variable load in the event of a main power network failure. No overload is permitted.Power available at variable load in the event of a main power network failure. No overload is permitted.
Baseload
Unlimited hours usage with an average load factor of 100% of the published baseload power. No overload is permitted on baseload power.Unlimited hours usage with an average load factor of 100% of the published baseload power. No overload is permitted on baseload power.
