Certified Models 2806D-E18TAG

Speak to an expert Find your Distributor

Key Specs

Gross Mechanical Output
540 - 593 kWm
540 - 593 kWm
Typical Electrical Output
625 - 660 kVA (500-528 kWe)
625 - 660 kVA (500-528 kWe)
Emissions
India CPCBII, China III
India CPCBII, China III

Overview

The Perkins® 2800 Series is a family of well-proven 6 cylinder, 18 litre in-line diesel engine, designed to address today’s uncompromising demands within the power generation industry with particular aim at the standby market sector.
Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability.

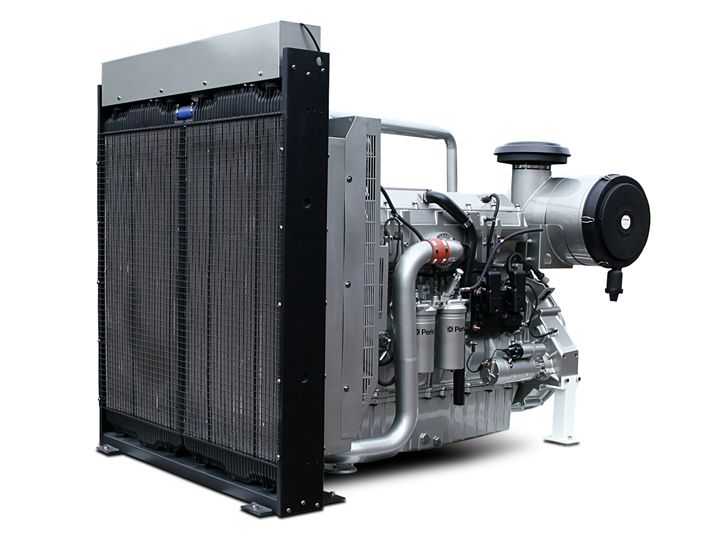

The 2806D-E18TAG1A is a turbocharged and air-to-air charge cooled, 6 cylinder diesel engine of 18 litres capacity. Its premium features provide economic and durable operation, low gaseous emissions and advanced overall performance and reliability.

Product Specifications for 2806D-E18TAG

Gross Mechanical Output 540 - 593 kWm 540 - 593 kWm
Typical Electrical Output 625 - 660 kVA (500-528 kWe) 625 - 660 kVA (500-528 kWe)
Rated Speed 1500 rpm 1500 rpm
Prime 625 kVA 625 kVA
Standby 660 kVA 660 kVA
Emissions India CPCBII, China III India CPCBII, China III
Number of Cylinders 6 vertical inline 6 vertical inline
Bore 5.7 in 145 mm
Stroke 7.2 in 183 mm
Displacement 1104 in³ 18.1 l
Compression Ratio 18.0:1 18.0:1
Aspiration Turbocharged and air-to-air charge cooled Turbocharged and air-to-air charge cooled
Combustion System Direct injection Direct injection
Rotation from Flywheel End Anti-clockwise Anti-clockwise
Cooling System Liquid Liquid
Aftertreatment - -
Typical Alternator Efficiency 92% 92%
Switchable No No
Length 94.8 in 2408 mm
Width 57.3 in 1455 mm
Height 71 in 1805 mm
Dry Weight 4584 lb 2079 kg
Note 1 *Final dimensions dependent on selected options *Final dimensions dependent on selected options
Prime Power Variable load. Unlimited hours usage with an average load of 70% of the published prime power rating. A 10% overload is available for 1 hour in every 12 hour of operation. Variable load. Unlimited hours usage with an average load of 70% of the published prime power rating. A 10% overload is available for 1 hour in every 12 hour of operation.
Standby Power Variable load. Limited to 500 hours annual usage up to 300 hours of which may be continuous running. No overload is permitted. Variable load. Limited to 500 hours annual usage up to 300 hours of which may be continuous running. No overload is permitted.

2806D-E18TAG Standard Equipment

Air inlet system

  • Mounted air filter

Cooling system

  • Gear driven circulating pump
  • Low coolant level switch
  • Mounted belt driven pusher fan
  • Radiator incorporating air-to-air charge cooler, (supplied loose)
  • System designed for ambients up to 50ºC (122ºF)

Electrical equipment

  • 24 volt starter motor and 24 volt 70 amp alternator with DC output
  • ECM mounted on engine with wiring looms and sensors

Flywheels and flywheel housing

  • High inertia flywheel to SAE J620 size 14
  • SAE No. 1 flywheel housing

Fuel system

  • Fuel cooler
  • Governing to ISO 8528-5 class G2 with isochronous capability
  • Mechanically actuated electronically controlled unit fuel injectors with full authority electronic control
  • Spin-on primary, secondary amd water filter separator

Mountings

  • Front engine mounting bracket

Oil system

  • Full flow spin-on filters
  • Oil cooler integral with filter header
  • Wet sump with filler and dipstick
